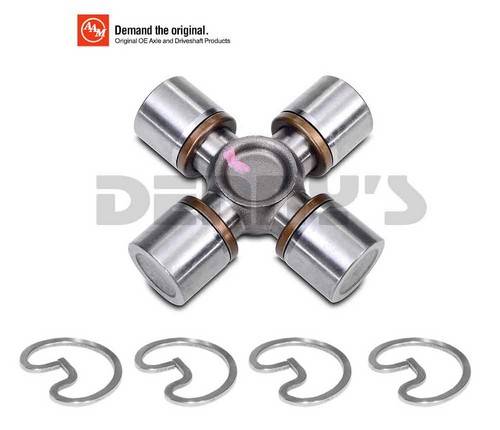

AAM 19256728 Universal Joint for AAM Front CV Driveshaft 1355 series DODGE 2500 and 3500 (40085102), (7064399)
Part Number:
19256728
Your Cost $24.95
STATUS:  IN STOCK

AAM 19256728  (40085102), (7064399)

Fits AAM Front 1355 series CV Driveshaft DODGE 2500 and 3500

1355 Series U-Joint.

  • Fits 2003 AND NEWER DODGE 2500 FRONT CV DRIVESHAFT applications with 1355 Series AAM American Axle built driveshafts
  • Fits 2003 to 2006 DODGE 3500 FRONT CV DRIVESHAFT applications with 1355 Series AAM American Axle built driveshafts
  • AAM 1355 series dimensions
    • Dimension A & B = 3.622 inches wide in both directions
    • Dimension C & D = All 4 bearing caps are 1.188 inch diameter
    • Outside snap rings











AAM
AAM 19256728 Universal Joint for AAM Front CV Driveshaft 1355 series DODGE 2500 and 3500 (40085102), (7064399)
AAM 19256728 Universal Joint for AAM Front CV Driveshaft 1355 series DODGE 2500 and 3500 (40085102), (7064399)
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $24.95

AAM 19256728  (40085102), (7064399)

Fits AAM Front 1355 series CV Driveshaft DODGE 2500 and 3500

1355 Series U-Joint.

  • Fits 2003 AND NEWER DODGE 2500 FRONT CV DRIVESHAFT applications with 1355 Series AAM American Axle built driveshafts
  • Fits 2003 to 2006 DODGE 3500 FRONT CV DRIVESHAFT applications with 1355 Series AAM American Axle built driveshafts
  • AAM 1355 series dimensions
    • Dimension A & B = 3.622 inches wide in both directions
    • Dimension C & D = All 4 bearing caps are 1.188 inch diameter
    • Outside snap rings

<<<<< IMPORTANT ...PLEASE READ THIS >>>>>

AAM Universal Joints have extremely good seals on each cap and it is difficult to compress the caps onto the body all the way using only your hand.

We have included this information because many customers have had concerns that the u-joint appears to be too wide when it is actually the correct width.

  • When you receive this u-joint you will notice that it appears wider than the posted dimension but if you compress the caps onto the body using a bench vise you will see that it is the correct width dimension.
  • Once you compress the caps onto the body you will find each cap has locked on and will require extra effort to remove the caps.  Please do this carefully so you do not damage the seals or lose any needle bearings.
  • Compressing the caps is not necessary to install the u-joint into the driveshaft but we have included this information because many customers have had concerns that they do not have the correct part because it appears to be too wide.
