Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

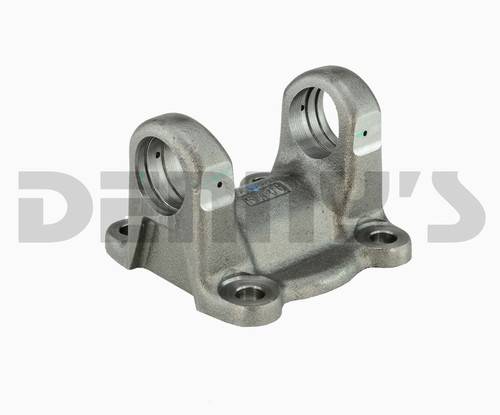

AAM 40055528 FLANGE YOKE 1485 series fits 4.181 x 1.375 inch u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
Part Number:
40055528
Your Cost $79.95
STATUS:  IN STOCK

AAM Part Number 40055528

FLANGE YOKE 1485 Series

  • Fits DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
    • Fits 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
  • OEM Numbers 5102158AA, 74088507, 40022502, 40038507
  • Casting number on flange yoke 40055983A
  • Fits 1485 series u-joint 1.375 inch cap diameter....see u-joint at bottom page
  • Fits 1485 series u-joint 4.181 inches cap to cap
  • Outside Snap Ring style

AAM
AAM 40055528 FLANGE YOKE 1485 series fits 4.181 x 1.375 inch u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
AAM 40055528 FLANGE YOKE 1485 series fits 4.181 x 1.375 inch u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $79.95

AAM Part Number 40055528

FLANGE YOKE 1485 Series

  • Fits DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
    • Fits 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft
  • OEM Numbers 5102158AA, 74088507, 40022502, 40038507
  • Casting number on flange yoke 40055983A
  • Fits 1485 series u-joint 1.375 inch cap diameter....see u-joint at bottom page
  • Fits 1485 series u-joint 4.181 inches cap to cap
  • Outside Snap Ring style

Dimensions

  • A - Flange or Swing Diameter = 5.875 inches
  • B - Bolt Circle Diameter = 4.750 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 3.750 inches
    • Center Pilot = MALE
  • Series = 1485
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.181 inches
    • D - U-Joint Bearing cap diameter = 1.375 inches
  • G - Center of u-joint bore to Face of flange = 2.25 inches
  • X - inches = 3.375
  • Y - inches = 3.375
  • Special Notes:



Denny's Driveshafts Flange Yoke Dimension Diagram

AAM 40055528 FLANGE YOKE 1485 series fits 4.181 x 1.375 inch u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft

AAM 40055528 FLANGE YOKE 1485 series fits 4.181 x 1.375 inch u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1485 series rear driveshaft

You May Also Need These Parts to Complete the Job

AAM 74081485 Universal Joint 1485 series fits DODGE AAM Rear Driveshaft and 9.25 Front Axles
$43.95
