Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

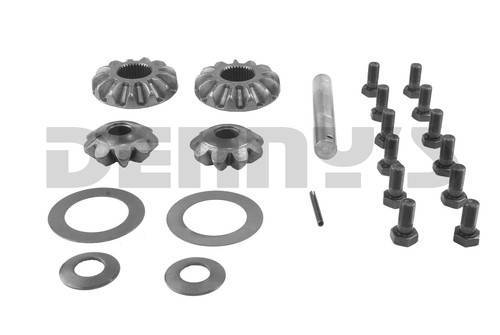

Dana Spicer 708236 Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits 2004 and newer FORD HIGH PINION Dana 60 FRONT differential case 706041X, 2005501 NEW STYLE FORMED GEARS
Part Number:
708236


UPC:
023913133429

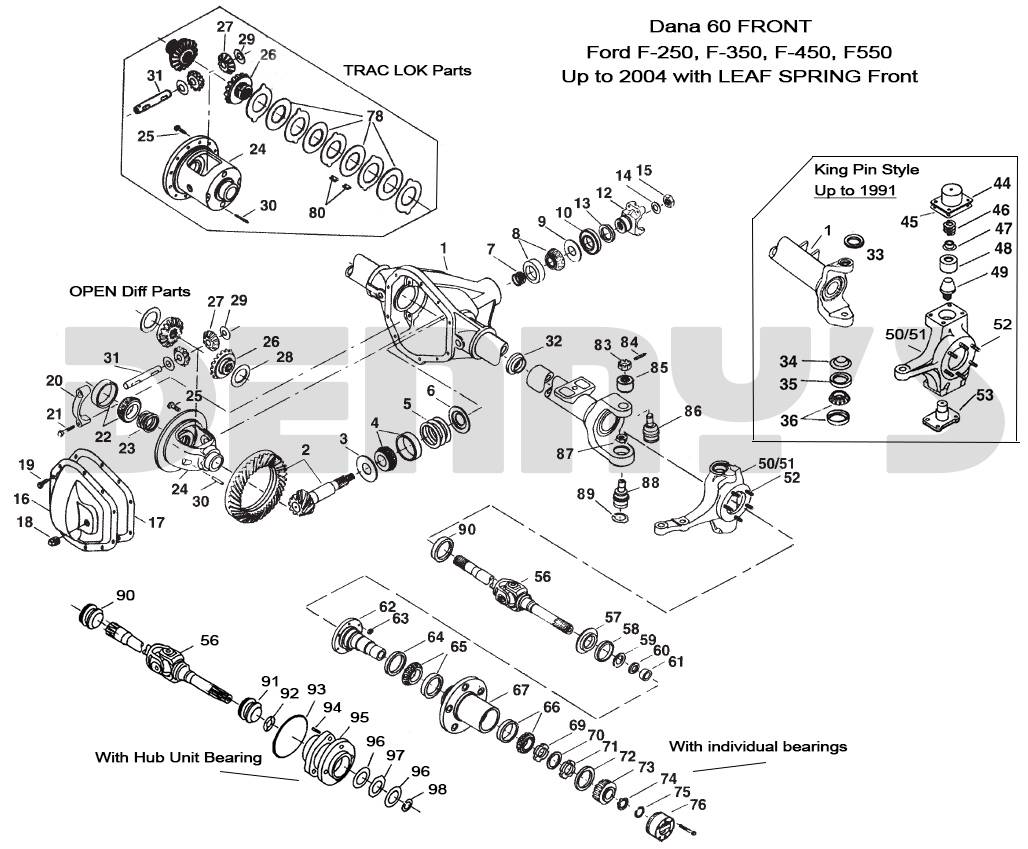

Diagram Number:
26-29
Your Cost $130.18
STATUS:  IN STOCK - FREE SHIPPING

Dana Spicer 708236

NEW STYLE - FORMED GEARS

DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline

  • Fits 2004 and newer FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
  • DANA 60 OPEN differential for FORD HIGH PINION FRONT
    • OPEN DIFF - NOT positraction
    • Fits 1.50 - 35 spline axles
    • Fits all ratio open diff cases
  • 708236 spider gear kit and 706041X Case are in Dana Spicer loaded case 2005501
  • NOTE: These spider gears (708236) have the NEW STYLE FORMED shape to the gear as compared to the older style gears (706702X) that look different

 INCLUDES:

QTY Part Description
2   SIDE SPIDER GEAR 1.50 - 35 SPLINE
2   SMALL SPIDER GEAR
2   CUPPED THRUST WASHER
2   SIDE GEAR FLAT THRUST WASHER
1   DIFF CROSS SHAFT
1 34687 GASKET
1 38615 2.8 OZ TUBE SILICONE
1 44810 ROLL PIN
12   RING GEAR BOLTS
