Dana Spicer 706040X Dana 60 Open DIFF CARRIER CASE 4.10 ratio and DOWN fits FORD HIGH PINION Dana 60 FRONT differential

Dana Spicer 706040X

DIFFERENTIAL CARRIER CASE ONLY

• Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
• DANA 60 OPEN differential for FORD HIGH PINION FRONT
  • OPEN DIFF - NOT positraction
  • UNLOADED/ EMPTY CASE - NO Internal Parts
  • Not compatible with ABS
  • Fits 4.10 and DOWN Gear ratios
    • 2.225 inches from end of side bearing mount to face of flange
  • Fits 1.50 - 35 spline axles and spider gears
  • Please select the correct spline Spider Gear Kit to match your axle
    • 2004 and newer Ford DANA Super 60 Front use 708236 Dana Spicer 35 spline internal spider gear kit for 706040X empty case
    • 1998 to 2002 Ford DANA 60 Front use 706702X Dana Spicer 35 spline internal spider gear kit for 706040X empty case
• 706040X empty case and 706702X spider grear kit are in Dana Spicer loaded case 2005502

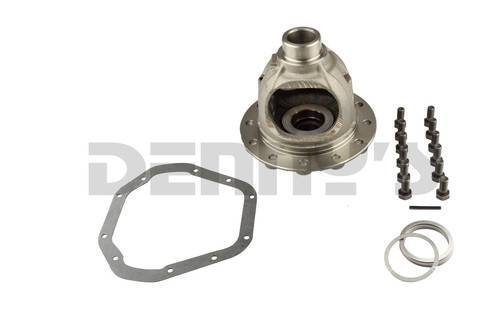

INCLUDES:

• (1) 30357 EMPTY CASE
• (1) 702002 / 708012 SET DIFF BEARING SHIMS
• (12) 701056X RING GEAR BOLTS
• (1) 44810 ROLL PIN
• (1) 34687 COVER GASKET
