DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot
Part #:
3-2-1869
Your Cost $45.30

SPICER 3-2-1869

1480 Series Ford Flange Yoke with 2.953 inch pilot




Spicer

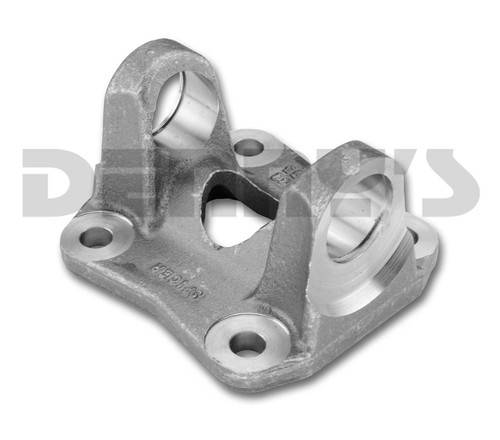

DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot
DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $45.30

SPICER 3-2-1869

1480 Series Ford Flange Yoke

  • A - Flange or Swing Diameter = 5.850 inches
  • B - Bolt Circle Diameter = 4.750 inches
    • Bolt Hole Diameter = .510 inches
    • Bolt Holes = 4
    • Bolt Holes = Drilled
  • C - Center Pilot Hole Diameter = 2.953 inches
    • Center Pilot = Female
  • Series = 1480
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches (4 3/16 inches)
    • D - U-Joint Bearing cap diameter = 1.375 inches (1 3/8 inches)
  • G - Center of u-joint bore to Face of flange = 2 inches
  • X - 3 3/8 inches
  • Y - 3 3/8 inches





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot

DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge
