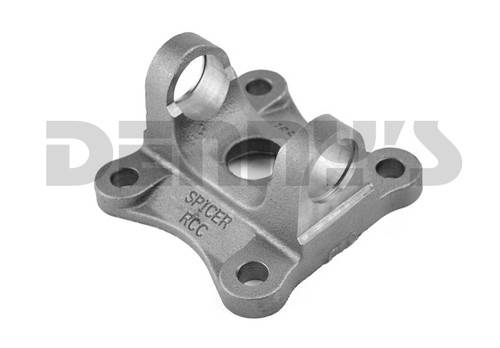

DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter
Part Number:
3-2-1859


UPC:
023913230777
Your Cost $55.26 Sale Price $49.95
You Save $5.31
STATUS:  IN STOCK

DANA SPICER 3-2-1859

1350 Series Flange Yoke

  • 4.750 inch bolt circle
  • 2.953 female pilot






Spicer
DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter
DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $55.26 Sale Price $49.95
You Save $5.31

DANA SPICER 3-2-1859

1350 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.750 inches
  • B - Bolt Circle Diameter = 4.750 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.953 inches
    • Center Pilot = FEMALE
  • Series = 1350
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.750 inches
  • X -3.360 inches
  • Y -3.360 inches
  • Special Notes: Bolt holes are equally spaced. Part has hole thru center.  Casting number on yoke C3-2-831
  • Dimensionally the same as Ford BR3Z-4782-A





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter

DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter
