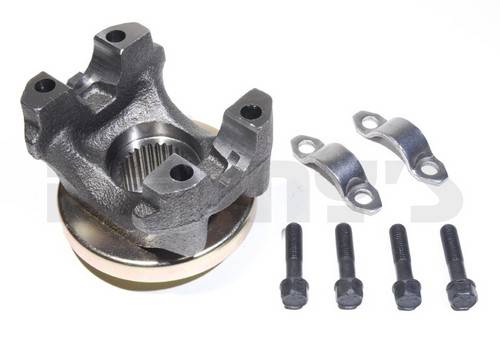

9136655 Pinion Yoke OEM Strap and Bolt style 1310 Series fits Chevy 12 Bolt Car and Truck rear ends
Part #:
9136655
Your Cost $99.95

9136655

PINION YOKE

  • Fits Chevy 12 bolt CAR and TRUCK Rear ends
  • 30 splines
  • 1310 Series ... see u-joints at bottom of this page
  • OEM Strap and Bolt style pinion yoke ... Strap & Bolt Set included
  • Exact match to original equipment

DIMENSIONS

  • SPLINE OD = 1.328
  • D = 1.062
  • E = 3.219
  • Q = 1.190
  • R = 1.740
  • S = 2.875

Comes with (2) Straps and (4) Bolts. Replace that old worn out original with a new one.

  • Chevy 12 Bolt 1310 Series Strap & Bolt Style 30 spline pinion yoke original equipment replacement.
  • Restoration fanatics will appreciate how exact this unit resembles the original OEM Pinion yoke.
  • U-joint size is 3 7/32 inches wide with 1 1/16th inch cap diameter.
  • These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals.
  • Fits all Chevy 30 spline 12 Bolt car and truck rear end differentials

9136655 Pinion Yoke OEM Strap and Bolt style 1310 Series fits Chevy 12 Bolt Car and Truck rear ends
9136655 Pinion Yoke OEM Strap and Bolt style 1310 Series fits Chevy 12 Bolt Car and Truck rear ends
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $99.95

9136655

PINION YOKE

  • Fits Chevy 12 bolt CAR and TRUCK Rear ends
  • 30 splines
  • 1310 Series ... see u-joints at bottom of this page
  • OEM Strap and Bolt style pinion yoke ... Strap & Bolt Set included
  • Exact match to original equipment

DIMENSIONS

  • SPLINE OD = 1.328
  • D = 1.062
  • E = 3.219
  • Q = 1.190
  • R = 1.740
  • S = 2.875

Comes with (2) Straps and (4) Bolts. Replace that old worn out original with a new one.

  • Chevy 12 Bolt 1310 Series Strap & Bolt Style 30 spline pinion yoke original equipment replacement.
  • Restoration fanatics will appreciate how exact this unit resembles the original OEM Pinion yoke.
  • U-joint size is 3 7/32 inches wide with 1 1/16th inch cap diameter.
  • These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals.
  • Fits all Chevy 30 spline 12 Bolt car and truck rear end differentials
