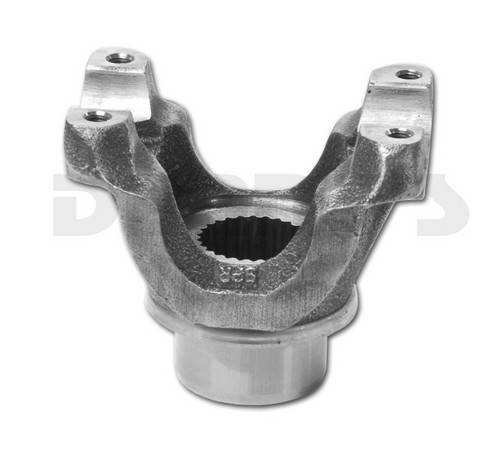

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits ALL with DANA 36 from 1984 to 1996 1310 series with 26 splines OEM Strap & Bolt Style
Part #:
2-4-8091-1X
Your Cost $41.95

DANA SPICER 2-4-8091-1X

Dana 36 1310 series Pinion Yoke 26 spline.  Strap and bolt style to match original equipment Corvette.

Spicer
Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits ALL with DANA 36 from 1984 to 1996 1310 series with 26 splines OEM Strap & Bolt Style
DANA SPICER 2-4-8091-1X fits Corvette Dana 36 with 26 spline pinion
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $41.95

DANA SPICER 2-4-8091-1X

Dana 36 1310 series Pinion Yoke 26 spline.  Strap and bolt style to match original equipment Corvette.

  • Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
  • 26 splines
  • Used as original equipment on Corvette Aluminum Rear Ends with 26 spline pinion
  • Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.219
  • Q = 1.500
  • R = 1.552
  • S = 3.000
image/jpeg
Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits ALL with DANA 36 from 1984 to 1996 1310 series with 26 splines OEM Strap & Bolt Style

DANA SPICER 2-4-8091-1X fits Corvette Dana 36 with 26 spline pinion
