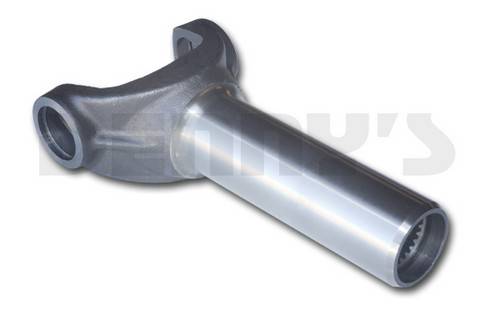

Dana Spicer 2-3-12051X slip yoke 6.76 inch with vent hole in plug 1330 series fits GM 700R, 4L60, 4L65 transmissions with 27 spline output
2-3-12051X
Dana Spicer 2-3-12051X
1330 Series long barrel length 27 spline 700R and 4L60 Transmission Slip yoke. Longer barrel length to match original equipment dimension.
Vent hole in plug.
Limited Supply: only 1 remaining
Pricing:
$96.50
Description
Dana Spicer 2-3-12051X
1330 Series long barrel length 27 spline 700R and 4L60 Transmission Slip yoke. Longer barrel length to match original equipment dimension.
DIMENSIONS
- Length to center of u-joint... Dimension #1 = 6.76 inches
- Barrel Diameter... Dimension #2 = 1.502 inches
- Barrel Length... Dimension #3 = 4.625 inches
- U-joint cap diameter... Dimension #4 = 1.062 inches
- U-joint width... Dimension #5 = 3.625 inches
- Series... 1330
- Spline count... 27
- Counterbore Diameter = 1.217
- Counterbore Depth = 0.410
- Special Notes: VENT HOLE IN PLUG
- see 2-3-11781X for non vented version
Details
- 2-3-12051X
- 2-3-12051X
- Spicer
- Available
- New
Categories
- Driveline Parts - Slip Yokes - SLIP YOKES - For Automatic and Manual Transmission
- Slip Yokes - SLIP YOKES - For Automatic and Manual Transmission - General Motors
- SLIP YOKES - For Automatic and Manual Transmission - General Motors - 27 Spline 1330 Series - Fits 3 5/8 by 1 1/16 U-Joint
- General Motors - 27 Spline 1330 Series - Fits 3 5/8 by 1 1/16 U-Joint - 6.75 INCH
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H5.0000” x L8.0000”
