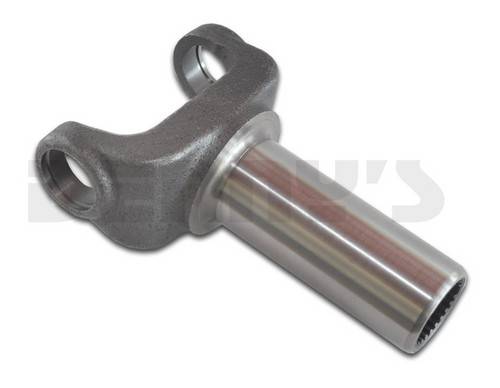

DANA SPICER 2-3-12081X 5 1/2 inch 1330 Slip Yoke Fits ALL GM transmissions with 27 spline output
Part Number:
2-3-12081X


UPC:
Your Cost $127.55 Sale Price $103.96
You Save $23.59
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

DANA SPICER 2-3-12081X

Transmission Slip Yoke

  • 1330 Series
  • Outside snap ring style
  • 3-5/8 inch barrel length
  • 27 spline
  • Fits Powerglide, T-350, 700R, 200R and 4L60 Transmission Slip yoke.
    • Also fits Muncie M20 & M21, Saginaw, Borg Warner T-5 T-10 & T-56 27 spline manual transmissions and other GM automatic transmissions with 27 spline output.
  • Fits the universal joints listed at the bottom of the page.

DIMENSIONS

  • Length to center of u-joint... Dimension #1 = 5 1/2 inches
  • Barrel Diameter... Dimension #2 = 1.500 inches
  • Barrel Length... Dimension #3 = 3 5/8 inches
  • U-joint cap diameter... Dimension #4 = 1 1/16 inches
  • U-joint width... Dimension #5 = 3 5/8 inches
  • Series... 1330
  • Spline count... 27

Spicer
DANA SPICER 2-3-12081X 5 1/2 inch 1330 Slip Yoke Fits ALL GM transmissions with 27 spline output
DANA SPICER 2-3-12081X 5 1/2 inch 1330 Slip Yoke Fits ALL GM transmissions with 27 spline output
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $127.55 Sale Price $103.96
You Save $23.59

DANA SPICER 2-3-12081X



Transmission Slip Yoke

  • 1330 Series
  • Outside snap ring style
  • 3-5/8 inch barrel length
  • 27 spline
  • Fits Powerglide, T-350, 700R, 200R and 4L60 Transmission Slip yoke.
    • Also fits Muncie M20 & M21, Saginaw, Borg Warner T-5 T-10 & T-56 27 spline manual transmissions and other GM automatic transmissions with 27 spline output.
  • Fits the universal joints listed at the bottom of the page.

DIMENSIONS

  • Length to center of u-joint... Dimension #1 = 5 1/2 inches
  • Barrel Diameter... Dimension #2 = 1.500 inches
  • Barrel Length... Dimension #3 = 3 5/8 inches
  • U-joint cap diameter... Dimension #4 = 1 1/16 inches
  • U-joint width... Dimension #5 = 3 5/8 inches
  • Series... 1330
  • Spline count... 27

DANA SPICER 2-3-12081X 5 1/2 inch 1330 Slip Yoke Fits ALL GM transmissions with 27 spline output

DANA SPICER 2-3-12081X 5 1/2 inch 1330 Slip Yoke Fits ALL GM transmissions with 27 spline output
