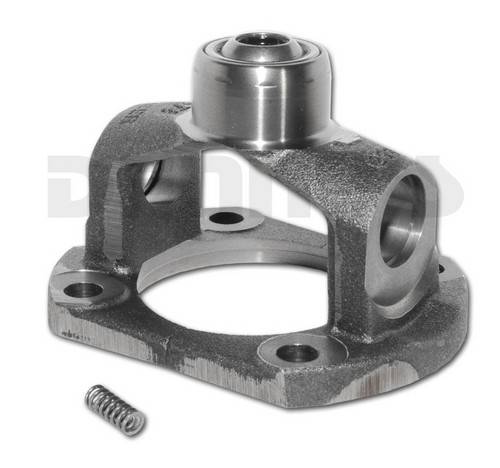

NEAPCO N2-83-913X Double Cardan CV Flange Yoke 1330 series fits Chevy, GMC, Dodge with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange

NEAPCO N2-83-913X

Chevy & GMC Double Cardan CV Flange Yoke 1330 Series General Motors.  Non Greaseable Maintenance Free design.  Mounts to any GM Double Cardan CV style transfer case flange or rear end flange.  Use this CV flange yoke to attach a 1330 Series Double Cardan CV driveshaft to a Chevy or GMC 4x4 Transfer Case.

Also can be used to attach a 1330 Series Double Cardan CV driveshaft to a GM rear end that originally had the 3R Series Double Cardan CV Joint.

• 1330 Series Double Cardan CV Flange Yoke
• Use with 1330 Series U-Joints listed below.
• Needle Bearing Ball Socket fits 1/2 inch stud yoke
• Maintenance Free
• Comes with New Spring included
• Bolt Pattern.... 4.25 inches measured diagonally
• Pilot Diameter... 3.125 inches (3 1/8 inches)
• Centering Yoke Fits 1330 Series Universal Joint
  • Dimension between outside snap rings on centering yoke is (3.625 inches) 3 5/8 inches
  • Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot
