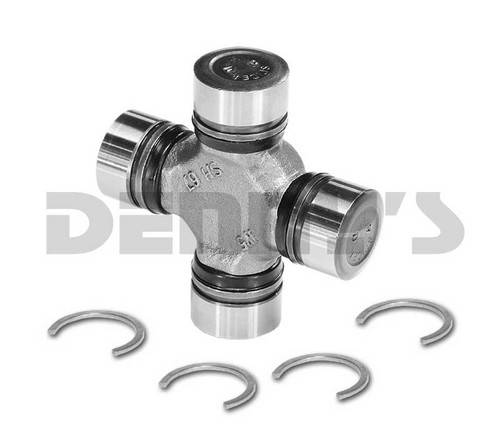

DANA SPICER 5-260X - Dana 30 Jeep Front Axle Universal Joint

DANA SPICER 5-260X - 4x4 Jeep Front Axle U-joint.

Commonly known as the "Small" axle u-joint.  This u-joint was found on early Jeep, Bronco, Chevy, Dodge, International and Ford 4X4 trucks before they realized that it was too small and started to use the larger and stronger 5-297X or 5-760X.   Easy to spot on open knuckle front ends by measuring the bearing cap diameter.  Utilizes inside "C" Clips to lock u-joint in place.

• Dimension A = 2.188 inches ( 2 3/16 inches )
• Dimension B = 2.188 inches ( 2 3/16 inches )
• Dimension C = 1.062 inches ( 1 1/16 inches )
• Dimension D = 1.062 inches ( 1 1/16 inches )
• Non Greaseable

Application Chart

• 1984 - 1993 Jeep Briarwood... all 1 1/16 inch diameter bearing cap
• 1967 - 1973 Jeep C101
• 1984 - 1994 Jeep Cherokee Compact XJ... all 1 1/16 inch diameter bearing cap
• 1963 - 1983 Jeep CJ5
• 1963 - 1975 Jeep CJ6
• 1976 -1986 Jeep CJ7
• 1986 - 1992 Jeep Comanche
• 1967 - 1973 Jeep Commando
• 1963 - 1973 Jeep Gladiator
• 1993 - Jeep Grand Cherokee
• 1963 - 1977 Jeep J262, J264, J362, J364
• 1967- 1973  Jeepster
• 1967 - 1973 Jeepster C101
• 1981 - 1985 Jeep Scrambler CJ8
• 1963 - 1977 Jeep Wagoneer
• 1984 - 1991 Jeep Wagoneer Compact XJ... all 1 1/16 inch diameter bearing cap
• 1987 - 1995 Jeep Wrangler YJ... all 1 1/16 inch diameter bearing cap
