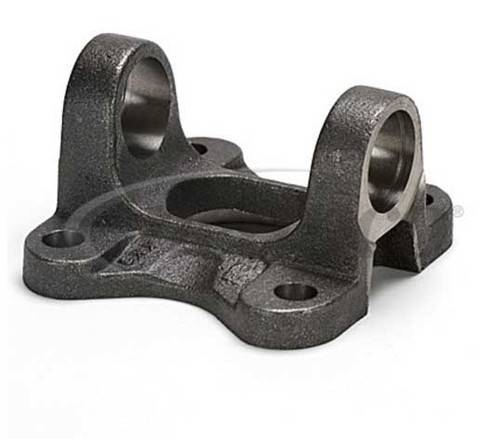

Neapco N3-2-1579 Flange Yoke 1350 Series fits Ford 8.8 inch rear ends with 4.25 inch bolt circle
N3-2-1579F
Neapco N3-2-1579
1350 Series Ford Flange Yoke to fit 8.8 inch rear ends with Large Bolt Pattern. Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.
- Large Bolt pattern is square 3 inches by 3 inches
- Center Pilot Hole Diameter is 2.0 inches
- 1350 series is 3.625 between snap rings and has 1.188 bearing cap diameter
- Replaces Dana Spicer 3-2-1579
Pricing:
$54.95
Description
Neapco N3-2-1579
1350 Series Ford Flange Yoke to fit 8.8 inch rear ends with Large Bolt Pattern. Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.
- Large Bolt pattern is square 3 inches by 3 inches
- Center Pilot Hole Diameter is 2.0 inches
- 1350 series is 3.625 between snap rings and has 1.188 bearing cap diameter
- Replaces Dana Spicer 3-2-1579
| Flange Yokes - Flange Yokes | Model/Part #: N3-2-1579 |
| A.) Flange or Swing Dia. | 5.250 |
| B) Bolt Circle Dia. | 4.250 |
| Bolt Hole Dia. (NOM) | .500-D |
| Number of Bolt Holes | 4 |
| C) Pilot Dia. F=female | 2.000-F |
| G) Flange Face to C/L | 1.625 |
| X) Bolt Pattern center to center | 3.0 |
| Y) Bolt Pattern center to center | 3.0 |
| U-Joint Width between snap rings | 3.625 |
| D) U-Joint cap diameter | 1.188 |
| Series | 1350 |
Details
- N3-2-1579F
- N3-2-1579F
- Neapco
- Available
- New
Categories
- Driveline Parts - FLANGE YOKES - FLANGE YOKES - By VEHICLE APPLICATION
- FLANGE YOKES - FLANGE YOKES - By VEHICLE APPLICATION - Ford
- FLANGE YOKES - By VEHICLE APPLICATION - Ford - 1350 Series - Fits 3.625 x 1.187 U-Joint
- Ford - 1350 Series - Fits 3.625 x 1.187 U-Joint - -- 4.25 inch Bolt Circle with 2 inch Pilot
- Driveline Parts - FLANGE YOKES
Shipping Information
- Item Requires Shipping
- 2.2 lbs.
- W6.0000” x H5.0000” x L2.0000”
