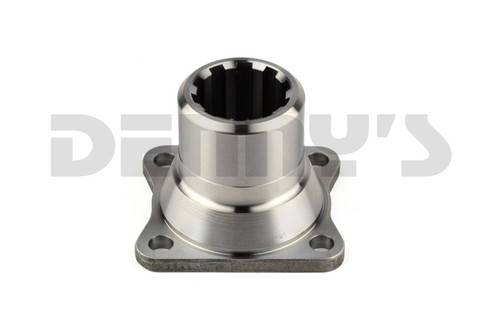

DANA SPICER 3-1-3211 Companion Flange 1350/1410 Series 1.750 x 10 spline with 2.250 Hub
478837
DANA SPICER 3-1-3211
- COMPANION FLANGE
- 1350/1410 Series
- 1.750 - 10 SPLINE
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$579.15
Description
DANA SPICER 3-1-3211
- COMPANION FLANGE
- 1350/1410 Series
- 1.750 - 10 SPLINE
| Companion Flanges - Splined Hole | Model/Part #: 3-1-3211 |
| D.) Spline OD | 1.750 |
| No. of Splines | 10 |
| C) Pilot Dia. M=male F=female | 2.750F |
| B) Bolt Circle Dia. | 3.750 |
| Bolt Hole Dia. (D-drilled T=tapped) | .438-D |
| No. of Holes | 4 |
| Drum Pilot Dia. | 3.000 |
| E) Hub Dia. | 2.250 |
| F) Len thru Hole | 2.188 |
| G) Flg. Face to Hub End | 2.812 |
| Figure | 1 |
| Slinger Part No. | |
| Series | 1350/1410 |
Details
- 478837
- 478837
- Spicer
- Available
- New
