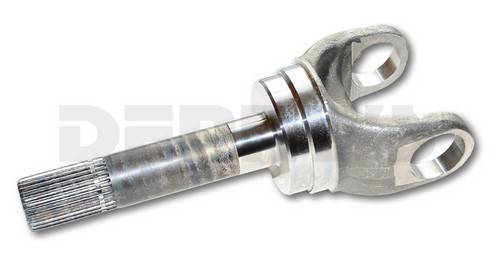

Dana Spicer 2002692 Outer Axle Shaft 30 spline fits 1999 to 2004 Ford F-450, F550 with Dana 60 front
Part #:
2002692
Your Cost $72.95

DANA SPICER 2002692

OUTER AXLE SHAFT

  • Fits FORD SUPER DUTY F-450 and F-550
    • 1999, 2000, 2001, 2002, 2003, 2004 with DANA 60 FRONT


30 SPLINE
FITS 5-806X or SPL55-3X UNIVERSAL JOINT
9.31 INCHES Centerline of u-joint to end of yoke

Spicer
Dana Spicer 2002692 Outer Axle Shaft 30 spline fits 1999 to 2004 Ford F-450, F550 with Dana 60 front
Dana Spicer 2002692 Outer Axle Shaft 30 spline fits 1999 to 2004 Ford F-450, F550 with Dana 60 front
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $72.95

DANA SPICER 2002692

OUTER AXLE SHAFT

  • Fits FORD SUPER DUTY F-450 and F-550
    • 1999, 2000, 2001, 2002, 2003, 2004 with DANA 60 FRONT


FITS 5-806X or SPL55-3X UNIVERSAL JOINT

  • B1 = 1.31 inch diameter with 30 splines
  • B = 9.31 inches Centerline of u-joint to end of yoke
  • U-Joint Snap Ring Dimension = 3 inches
  • U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
