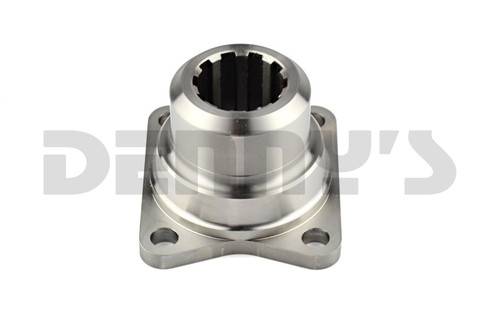

DANA SPICER 3-1-3191 Companion Flange 1350/1410 Series 1.500 x 10 spline with 2.250 Hub
471532
DANA SPICER 3-1-3191
- COMPANION FLANGE
- 1350/1410 Series
- 1.500 - 10 SPLINE
Not Available
Pricing:
$372.95
Description
DANA SPICER 3-1-3191
- COMPANION FLANGE
- 1350/1410 Series
| Companion Flanges - Splined Hole | Model/Part #: 3-1-3191 |
| D.) Spline OD | 1.500 |
| No. of Splines | 10 |
| C) Pilot Dia. M=male F=female | 2.750F |
| B) Bolt Circle Dia. | 3.750 |
| Bolt Hole Dia. (D-drilled T=tapped) | .438-D |
| No. of Holes | 4 |
| Drum Pilot Dia. | 3.000 |
| E) Hub Dia. | 2.250 |
| F) Len thru Hole | 2.000 |
| G) Flg. Face to Hub End | 2.375 |
| Figure | 1 |
| Slinger Part No. | |
| Series | 1350/1410 |
Details
- 471532
- 471532
- Spicer
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 3.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
