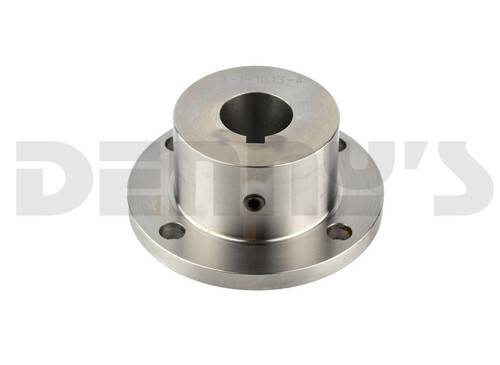

DANA SPICER 3-1-1013-4 Companion Flange 1350/1410 Series Fits 1.250 inch Round Shaft with .312 KEY
Part Number:
3-1-1013-4


UPC:
023913231910
Your Cost $79.95
STATUS:  IN STOCK

DANA SPICER 3-1-1013-4

  • COMPANION FLANGE
  • 1350/1410 Series
  • Same as NEAPCO N3-1-1013-4
Spicer
DANA SPICER 3-1-1013-4 Companion Flange 1350/1410 Series Fits 1.250 inch Round Shaft with .312 KEY
DANA SPICER 3-1-1013-4 Companion Flange 1350/1410 Series Fits 1.250 inch Round Shaft with .312 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $79.95

DANA SPICER 3-1-1013-4

  • COMPANION FLANGE
  • 1350/1410 Series
  • Same as NEAPCO N3-1-1013-4
Companion Flanges - Circular w/ Round Hole Model/Part #:  3-1-1013-4
D.) Bore Dia. 1.250
K) Keyway Width (nom.) .312
C) Pilot Dia. M=male F=female 2.750-F
Figure 1
Bolt Hole Dia. (D-drilled T=tapped) .438 D
Bolt Holes 4
E) Hub Dia. 2.875
F) Flg. Face to Hub End 2.000
A) Flange Diameter 4.562
B) Bolt Circle Diameter 3.750



Denny's Driveshafts Companion Flange Dimensions

DANA SPICER 3-1-1013-4 Companion Flange 1350/1410 Series Fits 1.250 inch Round Shaft with .312 KEY

DANA SPICER 3-1-1013-4 Companion Flange 1350/1410 Series Fits 1.250 inch Round Shaft with .312 KEY
