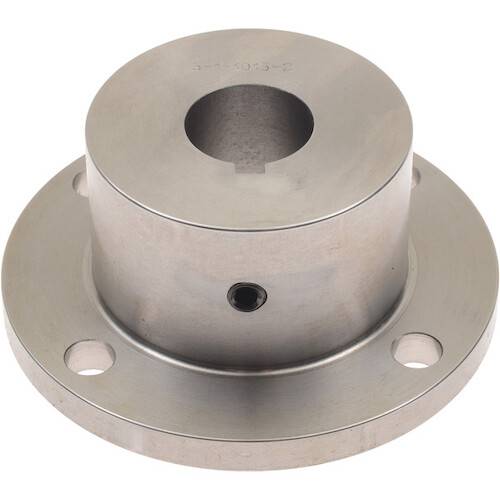

DANA SPICER 3-1-1013-2 Companion Flange 1350/1410 Series Fits 1.125 inch Round Shaft with .250 KEY
3-1-1013-2
DANA SPICER 3-1-1013-2
- COMPANION FLANGE
- 1350/1410 Series
- Same as NEAPCO N3-1-1013-2
Pricing:
$295.95
Description
DANA SPICER 3-1-1013-2
- COMPANION FLANGE
- 1350/1410 Series
- Same as NEAPCO N3-1-1013-2
| Companion Flanges - Circular w/ Round Hole | Model/Part #: 3-1-1013-2 |
| D.) Bore Dia. | 1.125 |
| K) Keyway Width (nom.) | .250 |
| C) Pilot Dia. M=male F=female | 2.750-F |
| Figure | 1 |
| Bolt Hole Dia. (D-drilled T=tapped) | .438 D |
| Bolt Holes | 4 |
| E) Hub Dia. | 2.875 |
| F) Flg. Face to Hub End | 2.000 |
| A) Flange Diameter | 4.562 |
| B) Bolt Circle Diameter | 3.750 |
Details
- 3-1-1013-2
- 3-1-1013-2
- Spicer
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
