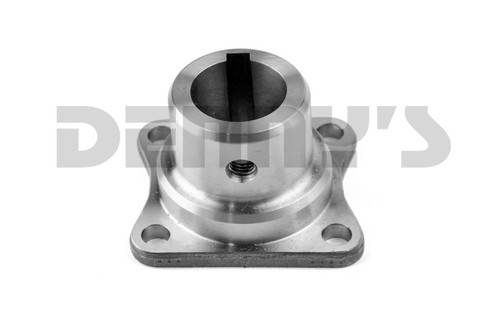

DANA SPICER 2-1-333 Companion Flange 1280/1310 series Fits 1.250 inch Round Shaft with .312 KEY
2-1-333
DANA SPICER 2-1-333
PTO COMPANION FLANGE for power take off applications
1280/1310 series
Not Available
Pricing:
$149.95
Description
DANA SPICER 2-1-333
COMPANION FLANGE for power take off applications
- SERIES 1280, 1310
- P - FITS 1.250 INCH DIAMETER SHAFT
- C - FEMALE PILOT DIAMETER - 2.375 INCHES
- X - KEYWAY WIDTH - .312 INCHES
- W - KEYWAY LOCATION - 12
- W - SET SCREW THREAD DIAMETER - .375 INCHES
- W - SET SCREW LOCATION - 6
- R - HUB DIAMETER - 1.875 INCHES
- F - LENGTH THROUGH HOLE - 1.5 INCHES
- G - FLANGE FACE TO END OF HUB - 2.062 INCHES
- A - TOTAL SWING DIAMETER - 3.875 INCHES
- B - BOLT CIRCLE DIAMETER - 3.125 INCHES
- 4 BOLT HOLES .375 DIAMETER
Details
- 2-1-333
- 2-1-333
- Spicer
- Temporarily Not Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
