Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

DANA SPICER 2-1-283 Companion Flange 1280/1310 series Fits 1 inch Round Shaft with .250 KEY
Part #:
2-1-283
Your Cost $153.60

DANA SPICER 2-1-283

PTO COMPANION FLANGE for power take off applications

1280/1310 series

Spicer
DANA SPICER 2-1-283 Companion Flange 1280/1310 series Fits 1 inch Round Shaft with .250 KEY
DANA SPICER 2-1-283 Companion Flange 1280/1310 series Fits 1 inch Round Shaft with .250 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $153.60

>>>>> FACTORY DIRECT PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable once we have placed the order with the factory.  Please make your selection carefully! <<<<<

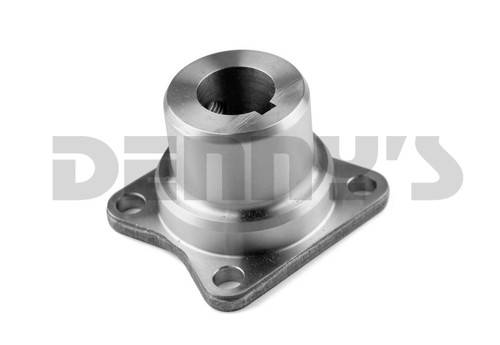

DANA SPICER 2-1-283

COMPANION FLANGE for power take off applications

  • SERIES 1280, 1310
  • P - FITS 1 INCH DIAMETER SHAFT
  • C - FEMALE PILOT DIAMETER -  2.375 INCHES
  • X - KEYWAY WIDTH - .250 INCHES
  • W - KEYWAY LOCATION - 12
  • W - SET SCREW THREAD DIAMETER  - .375 INCHES
  • W - SET SCREW LOCATION - 6
  • R - HUB DIAMETER - 1.875 INCHES
  • F - LENGTH THROUGH HOLE -  1.5 INCHES
  • G - FLANGE FACE TO END OF HUB  - 2.062 INCHES
  • A - TOTAL SWING DIAMETER - 3.875 INCHES
  • B - BOLT CIRCLE DIAMETER - 3.125 INCHES
  • 4 BOLT HOLES .375 DIAMETER
image/jpeg
DANA SPICER 2-1-283 Companion Flange 1280/1310 series Fits 1 inch Round Shaft with .250 KEY

DANA SPICER 2-1-283 Companion Flange 1280/1310 series Fits 1 inch Round Shaft with .250 KEY
