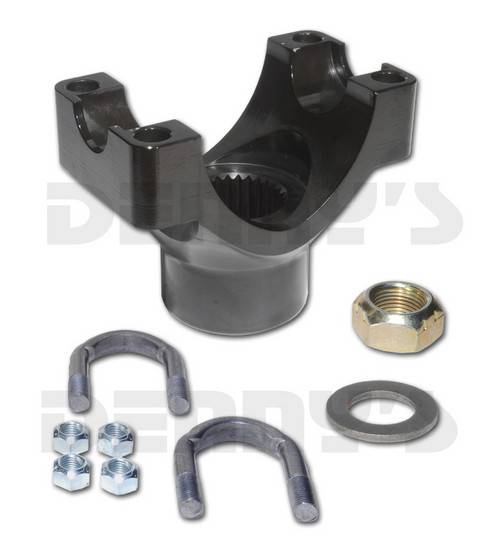

9522421 CHROMOLY Pinion Yoke 1350 series fits Corvette Dana 44 with 29 Spline pinion
Part #:
9522421
Your Cost $145.95

9522421

Chromoly Pinion Yoke 1350 Series

  • Fits Chevy Corvette Aluminum Dana 44
    • Fits Corvette Aluminum Dana 44 rear end with 29 spline pinion gear
      • 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
  • Fits 1350 Series universal joint
    • E = 3.625 between tab shoulders
    • D = 1.188 Bearing Cap Diameter
  • 29 spline
  • Forged 4340 Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 1350 series u-bolt set.

DIMENSIONS

  • S = 3.00 inch
  • R = 1.875 inch
  • Q = 1.500 inch
    • full spline - no counterbore
  • SPLINE OD = 1.276 inch
  • Washer OD = 1.500 inch
  • Washer ID = .900 inch
  • Washer thickness = .120 inch
  • Socket wrench size for nut =  1-5/16 inch
