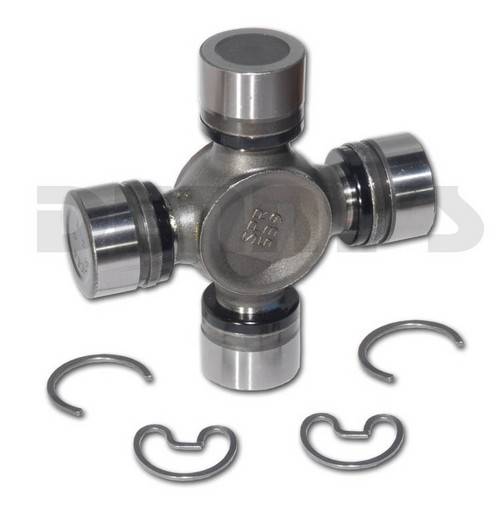

Dana Spicer 5-793X Combination U-joint 1330 to GM 3R Series
5-793X
DANA SPICER 5-793X1330 to GM 3R Series Combination Spicer Maintenance Free Universal Joint
Pricing:
$23.95
Description
DANA SPICER 5-793X
1330 to GM 3R Series Combination Spicer Maintenance Free Universal Joint. Strong high mileage and handy u-joint when connecting mismatched driveline components.
Use this to connect 1330 series components to GM 3R series components.
- 1330 series dimensions
- 3.625 inches wide
- 2 bearing caps are 1.0625 inch diameter
- outside snap rings
- GM 3R series dimensions
- 3.625 inches wide
- 2 bearing caps are 1.125 inch diameter with inside "C" Clips to lock the cap in place.
- inside "C" Clips
- The span between the yoke inner surfaces where the "C" Clips lock in is 2.562 inches
-
Details
- 5-793X
- 5-793X
- Spicer
- Available
- New
Categories
- Driveline Parts - Universal Joints - COMBINATION-CONVERSION U-Joints
- COMBINATION-CONVERSION U-Joints - Combo U-Joint 1330 to 3R series 3.625 OUTSIDE to 2.562 INSIDE - 1.062 X 1.125 Bearing Cap Diameter
- Universal Joints - COMBINATION-CONVERSION U-Joints - Combo U-Joint 1330 to 3R series 3.625 OUTSIDE to 2.562 INSIDE
- Driveline Parts - Universal Joints
Shipping Information
- Item Requires Shipping
- 1.6 lbs.
- W6.0000” x H5.0000” x L2.0000”
