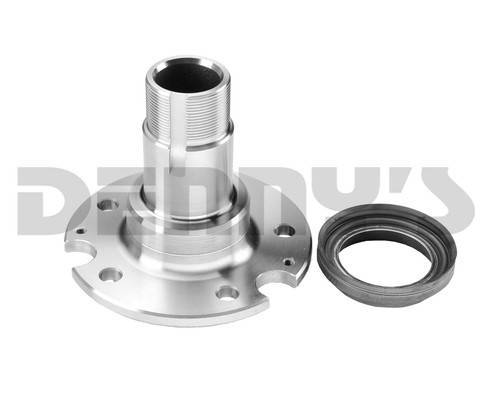

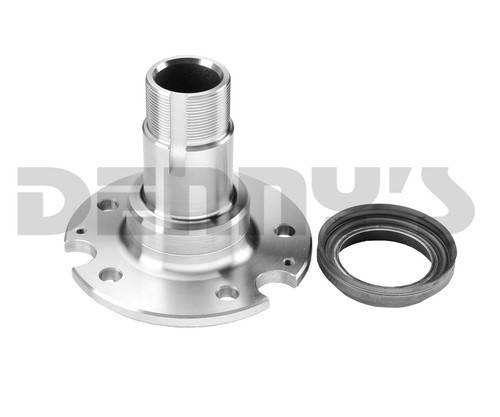

Dana Spicer 707341X SPINDLE fits 1993 to 1994-1/2 Ford Explorer w/abs and 1995 to 1997-1/2 Ranger w/abs with DANA 35 IFS front axle

DANA SPICER 707341X

• SPINDLE
  • Replaces old number Dana Spicer 44608
  • Replaces old number Dana Spicer 75294X
• Fits Ford Explorer w/abs with DANA 35 IFS front with axle universal joints
  • 1993, 1994, 1994-1/2
• Fits Ford Ranger w/abs with DANA 35 IFS front with axle universal joints
  • 1995, 1996, 1997, 1997-1/2
• Does not fit Dana 35 IFS with CV Axles

INCLUDES

• 707316X bearing and seal kit

DIMENSIONS

• A = 1.780 in. OD for Outer Wheel Bearing
• B = 1.780 in. OD for Inner Wheel Bearing
• C = 2-1/2 in. OD for Seal
• D = 3-3/8 in.
• E = 3/8 in.
• F = 5/16 in.
• G = 3-13/16 in.
• H = 4-1/2 in.
• K = 5-1/8 in.
• Bolt Holes = 5
• Bolt Hole Diameter = .420 in.
• Flange has 2 cutouts approximately .830 diameter
• Flange has (2) threaded holes 3/16 inch diameter
• Keyway = .312 in
