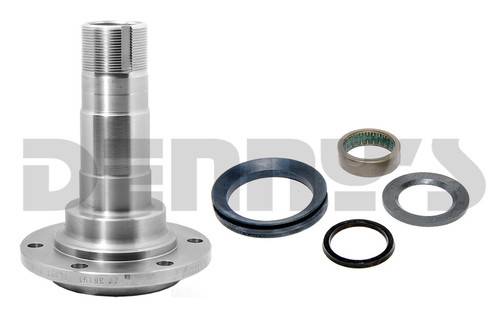

Dana Spicer 706539X SPINDLE fits 1973 to 1975 Ford Bronco U-100, F100, F150 Pick Up with DANA 44 Front Axle

DANA SPICER 706539X

• SPINDLE
  • Replaces old Dana Spicer 706108X
  • Comes with 706527X splindle bearing and seal set
    • Ready to bolt in....Inner spindle needle bearing has been pressed in place at the proper depth
• Fits Ford Bronco U-100 with Dana 44 front axle
  • 1973, 1974, 1975
• Fits F100, F150 Pick Up with Dana 44 front axle
  • 1973, 1974, 1975

DIMENSIONS:

• KEYWAY SLOT = .250 in. wide (1/4 inch)
• BORE ID = 1.300 inches
• A = 1.622 in. OD for Outer Wheel Bearing
• B = 1.778 in. OD for Inner Wheel Bearing
• C = 2-1/2 in. OD for Seal
• D = 3-3/8 in.
• E = 7/16 in.
• F = 3/8 in.
• G = 5-7/16 in.
• H = 6-1/4 in.
• K = 4-3/4 in.
• Bolt Holes = 6
• Bolt Hole Diameter = .400 in.
