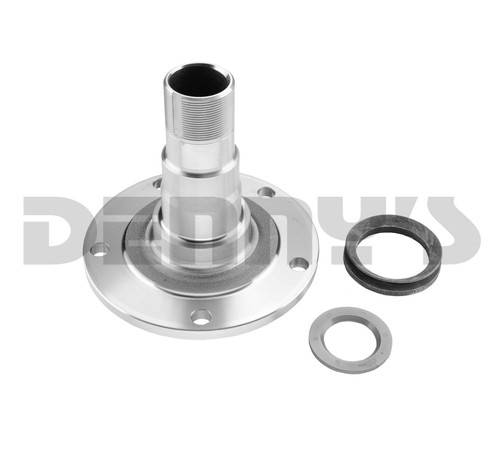

Dana Spicer 700004 SPINDLE fits 1977-1/2 to 1979 FORD F250 with High Pinion Reverse Rotation DANA 44 Front Axle

DANA SPICER 700004

• SPINDLE
  • 5 mounting holes
  • Flange Diameter = 6.125
• Fits FORD F-250 with High Pinion Reverse Rotation DANA 44 Front Axle
  • 1977-1/2, 1978 and 1979

DIMENSIONS

• A = 1.625 in. OD for Outer Wheel Bearing
• B = 2 in. OD for Inner Wheel Bearing
• C = 2-1/2 in. OD for Seal
• D = 4-1/8 in.
• E = 15/16 in.
• F = .360 in.
• G = 5 in.
• H = 6-1/4 in.
• K = 6-1/8 in.
• Bolt Holes = 5
• Bolt Hole Diameter = .470 in.
• Keyway = .260 in
