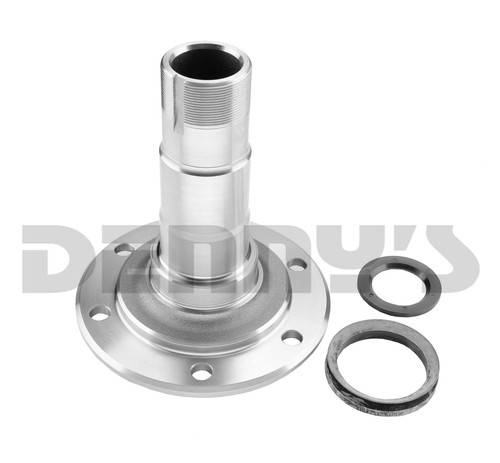

Dana Spicer 10086723 SPINDLE fits 1987 to 1993-1/2 DODGE W200, W300 with DANA 61 front axle replaces old number 700013

DANA SPICER 10086723 replaces old number 700013

• SPINDLE with bearing and seal kit
  • Comes with 700014 splindle bearing and seal kit
  • Comes with inner spindle bearing installed at the proper depth.
• Fits DODGE W200, W300 with DANA 61 front axle
  • 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2

DIMENSIONS

• A = 2 in. OD for Outer Wheel Bearing
• B = 2-1/4 in. OD for Inner Wheel Bearing
• C = 2-3/4 in. OD for Seal
• D = 4-1/2 in.
• E = 5/16 in.
• F = 5/16 in.
• G = 6-7/8 in.
• H = 7-1/2 in.
• K = 6-3/4 in.
• Bolt Holes = 6
• Bolt Hole Diameter = .520 in.
• Keyway = .280 in
