Dana Spicer 700004 SPINDLE fits 1977-1/2 to 1979 FORD F250 with High Pinion Reverse Rotation DANA 44 Front Axle
Part #:
700004
Your Cost $206.12

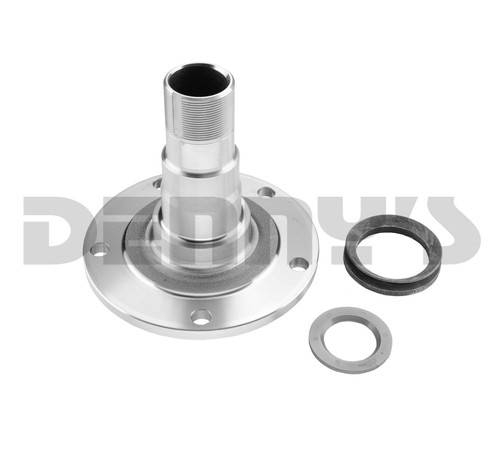

DANA SPICER 700004

  • SPINDLE
    • 5 mounting holes
    • Flange Diameter = 6.125
  • Fits FORD F-250 with High Pinion Reverse Rotation DANA 44 Front Axle
    • 1977-1/2, 1978 and 1979



Spicer
Dana Spicer 700004 SPINDLE fits 1977-1/2 to 1979 FORD F250 with High Pinion Reverse Rotation DANA 44 Front Axle
Dana Spicer 700004 SPINDLE fits 1977-1/2 to 1979 FORD F250 with High Pinion Reverse Rotation DANA 44 Front Axle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $206.12

DANA SPICER 700004

  • SPINDLE
    • 5 mounting holes
    • Flange Diameter = 6.125
  • Fits FORD F-250 with High Pinion Reverse Rotation DANA 44 Front Axle
    • 1977-1/2, 1978 and 1979

DIMENSIONS

  • A = 1.625 in. OD for Outer Wheel Bearing
  • B = 2 in. OD for Inner Wheel Bearing
  • C = 2-1/2 in. OD for Seal
  • D = 4-1/8 in.
  • E = 15/16 in.
  • F = .360 in.
  • G = 5 in.
  • H = 6-1/4 in.
  • K = 6-1/8 in.
  • Bolt Holes = 5
  • Bolt Hole Diameter = .470 in.
  • Keyway = .260 in



How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
