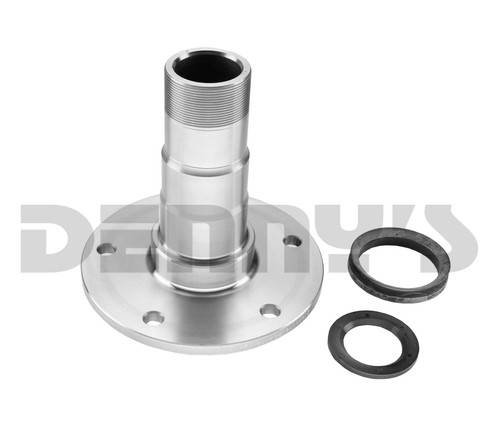

Dana Spicer 10086724 SPINDLE fits 1978, 1979 Ford F250, F350 and 1985 to 1991-1/2 F350 with Dana 60 front axle replaced old number 700022

DANA SPICER 10086724 replaces ols number 700022

• SPINDLE

  • Comes with 700014 Bearing and seal kit.  Bearing is factory installed to proper depth.
• Fits Ford F250 Supercab and Snowfighter with Dana 60 front axle
  • 1978, 1979
• Fits Ford F350 with Dana 60 front axle
  • 1978, 1979 and also 1985
• Fits Ford F350 Monobeam with Dana 60 front axle with Dual Rear Wheels

  • 1986, 1987, 1988
• Fits Ford F350 Monobeam with Dana 60 front axle with Single Rear Wheels

  • 88-1/2, 1989, 1990, 1991, 1991-1/2

DIMENSIONS

• A = 2 in. OD for Outer Wheel Bearing
• B = 2-1/4 in. OD for Inner Wheel Bearing
• C = 2-3/4 in. OD for Seal
• D = 4-1/2 in.
• E = 13/16 in.
• F = 3/8 in.
• G = 5-11/16 in.
• H = 6-7/8 in.
• K = 6-1/2 in.
• Bolt Holes = 5
• Bolt Hole Diameter = .470 in.
• Keyway = .280 in
