Driveshaft and Driveline Parts > BUILD IT YOURSELF - PARTS LISTS > 1350 SPLINE and SLIP DRIVESHAFT > BUILD 1350 SERIES with 2 INCH DIAMETER TUBE > CV STUD YOKE, H YOKE AND CENTERING YOKE

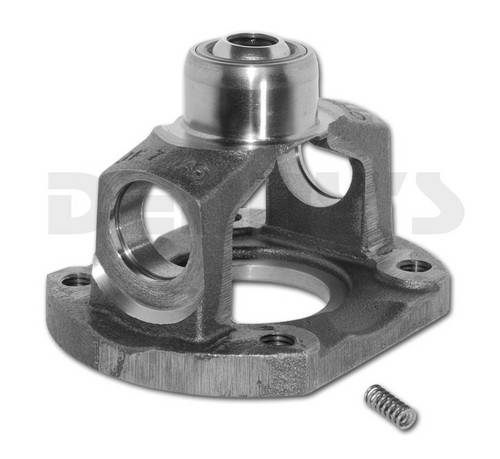

NEAPCO N3-83-025X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2.687 inch pilot

Part Number:
N3-83-025X

UPC:

083869015804

Your Cost $101.99

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N3-83-025X

Double Cardan CV Flange Yoke
1350 Series
Fits FORD 4X4 transfer case with 2.687 inch pilot

Neapco

NEAPCO N3-83-025X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2.687 inch pilot

NEAPCO N3-83-025X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2.687 inch pilot

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $101.99

NEAPCO N3-83-025X

Double Cardan CV Flange Yoke
1350 Series
Fits FORD 4X4 transfer case with 2.687 inch pilot
- 4 Mounting holes are THREADED to accept OEM Ford bolts
- Bolt Pattern.... 4.25 inches measured diagonally
- Pilot Diameter... 2.687 inches
- Needle Bearing Ball Socket fits 1/2 inch stud yoke
- NON greaseable Maintenance Free
- Comes with New Spring included
- Dimension between outside snap rings...(3.625 inches) 3 5/8 inches
- Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap

Use with 1350 Series U-Joints listed below.

NEAPCO N3-83-025X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2.687 inch pilot

NEAPCO N3-83-025X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2.687 inch pilot

You May Also Need These Parts to Complete the Job

42-1855 BOLT Set M12-1.75 for Ford Transmission/Transfer Case Flange - 12mm 12 point bolt set Part#: 42-1855 $11.95	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.10~~ $22.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95	Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54
DANA SPICER 2-86-418 Rubber Boot for Ford OEM Non Greaseable CV Centering Yoke Part#: 2-86-418 $6.85
