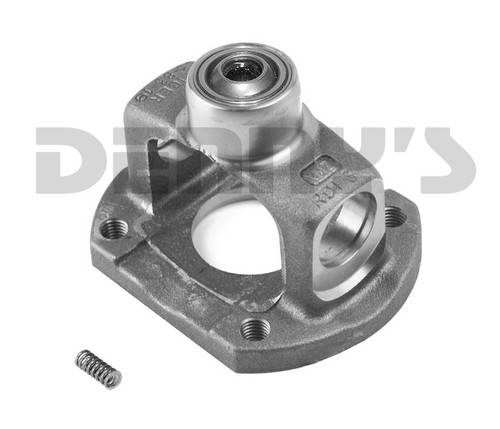

Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2 inch pilot
Part Number:
212024X


UPC:
023913229542
Your Cost $91.95
STATUS:  IN STOCK

DANA SPICER 212024X

  • Double Cardan CV Flange Yoke
  • 1350 Series
  • Fits FORD 4X4 transfer case with 2 inch pilot
  • DOES NOT FIT any greaseable style 1350 series stud yokes
  • DOES NOT FIT OEM Driveshaft with press on ball.
    • Please see the bottom of this page for new rubber boot

    image/jpeg





Spicer
Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan fits FORD transfer case with 2 inch pilot
Dana Spicer 212024X CV Flange Yoke 1350 Series Double Cardan FORD transfer case with 2 inch pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $91.95

DANA SPICER 212024X

  • Double Cardan CV Flange Yoke
  • 1350 Series
  • Fits FORD 4X4 transfer case with 2 inch pilot
    • 4 Mounting holes are THREADED to accept OEM Ford bolts
    • Bolt Pattern.... 4.25 inches measured diagonally
    • Pilot Diameter... 2 inches
    • Needle Bearing Ball Socket fits 1/2 inch stud yoke
    • NON greaseable Maintenance Free
    • Comes with New Spring included
    • Dimension between outside snap rings...(3.625 inches) 3 5/8 inches
    • Designed to fit (1.187 inches) 1 3/16 inch U-Joint Bearing cap
    • DOES NOT FIT any greaseable style 1350 series stud yokes
    • DOES NOT FIT OEM Driveshaft with press on ball.
  • Use with 1350 Series U-Joints listed below.

IMPORTANT: The "SPICER" name must be visible on your original H-Yoke and Flange yoke to use these replacement parts.

If you have a driveshaft that looks like the one in these photos then this cv will NOT work.

  • Please notice the shape of the mounting flange...if yours looks like the mounting flange in the photo on the left then this CV will not fit.
  • Please notice the squared shape of the H-Yoke around the holes for the u-joint cap and snap ring in the photo on the right. ... If yours has the squared shape then this CV will not fit.
  • If you have a driveshaft with a pressed on ball on the cv stud yoke then this cv will NOT work.
