Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > Chevy 8.2 10 Bolt with 25 Splines

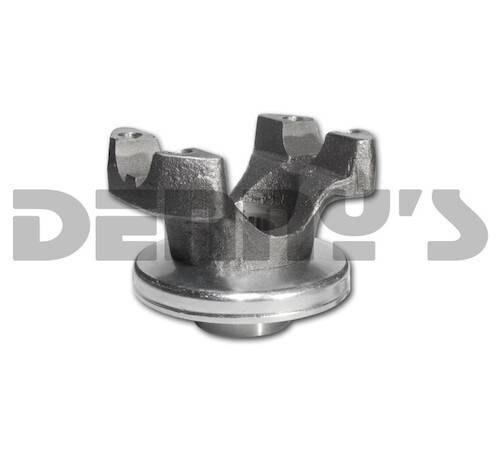

9125111 Pinion Yoke 1310 series fits 1964-1972 Chevrolet 8.2 inch 10 Bolt with 25 spline pinion

Part Number:
9125111

UPC:

Your Cost $102.25

STATUS: IN STOCK - FREE SHIPPING

9125111

Pinion yoke
- Fits CHEVY 8.2 inch 10 bolt rear
  - 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
- 25 spline
- 1310 series
- Scroll to bottom of page for pinion nut, washer and u-bolt set.

9125111 Pinion Yoke 1310 series fits 1964-1972 Chevrolet 8.2 inch 10 Bolt with 25 spline pinion

9125111 Pinion Yoke 1310 series fits 1964-1972 Chevrolet 8.2 inch 10 Bolt with 25 spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $102.25

9125111

Pinion yoke
- Fits CHEVY 8.2 inch 10 bolt rear
  - 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
- 25 spline
- 1310 series
- Scroll to bottom of page for pinion nut, washer and u-bolt set.
Dimensions
- D = 1.062 inches
- E = 3.219 inches between tabs
- Q = 1.500 inches
- R = 1.520 inches
- S = 2.9375 inches
- 1.416 inches centet to center of u-bolt holes

image/jpeg

9125111 Pinion Yoke 1310 series fits 1964-1972 Chevrolet 8.2 inch 10 Bolt with 25 spline pinion
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

8812 Pinion Nut and Washer fits 1964 to 1971 CHEVY 8.2 inch 10 bolt with 25 spline pinion Part#: 8812 $9.85	TIMKEN 8611N Pinion Seal 1964 to 1972 Chevy 8.2 Inch 10 Bolt Part#: 8611N $19.25
Dana Spicer 2-94-28X U-Bolt Set fits 1.062 bearing cap diameter 1.416 CL on 1310 or 1330 pinion yokes, transfer case yokes and transmission yokes FORD, CHEVY, GMC, DODGE, JEEP, IHC Part#: 2-94-28X $5.98	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.09
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$16.53~~ $15.01
