Driveshaft and Driveline Parts > BUILD IT YOURSELF - PARTS LISTS > 1310 SPLINE and SLIP DRIVESHAFT > BUILD 1310 SERIES with 2.5 INCH DIAMETER TUBE > CV STUD YOKE, H YOKE AND CENTERING YOKE

DANA SPICER 2-28-2957X CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tube

Part Number:
2-28-2957X

UPC:

023913230739

Your Cost $68.78

STATUS: IN STOCK

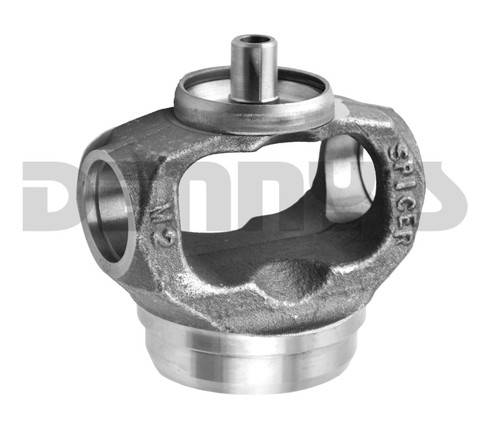

DANA SPICER 2-28-2957X

CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tubing

Spicer

DANA SPICER 2-28-2957X CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tube

DANA SPICER 2-28-2957X CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tubing

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $68.78

DANA SPICER 2-28-2957X

CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tubing

1310 Series

Fits 2.5 inch OUTSIDE Diameter Tubing with .083 inch wall thickness
Use with GREASEABLE style CV Centering Yokes ONLY
Designed to hold 1310 series universal joint
- Fits 3 7/32 wide universal joint
- Fits 1 1/16 bearing cap diameter
- Outside Snap Ring style
D = 1.062
E = 3.469
F = 2.344
H = .500
J = 1.641
K = 1.440

image/jpeg

DANA SPICER 2-28-2957X CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tube

DANA SPICER 2-28-2957X CV Ball STUD YOKE 1310 Series to fit 2.5 inch .083 wall tubing

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
