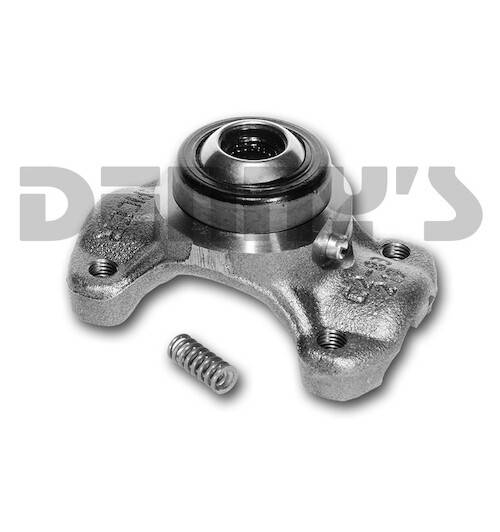

DANA SPICER 211355X CV Centering Yoke 1310 Series GREASABLE
211355X
DANA SPICER 211355X
- Use on any 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
- 1310 Series... 3 1/4 inches between Tabs in centering Yoke
- GREASABLE center ball socket
- New spring Included
DIMENSIONS
- Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
-
- Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
-
- Fits .500 inch stud diameter
INCLUDES
- New spring Included
Not Available
Pricing:
$55.23
Description
DANA SPICER 211355X
- Use on any 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
- 1310 Series... 3 1/4 inches between Tabs in centering Yoke
- GREASABLE center ball socket
- New spring Included
DIMENSIONS
- Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
-
- Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
-
- Fits .500 inch stud diameter
INCLUDES
- New spring Included
Details
- 211355X
- 211355X
- Spicer
- Temporarily Not Available
- New
Categories
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS - 1310 SPLINE and SLIP DRIVESHAFT
- BUILD IT YOURSELF - PARTS LISTS - 1310 SPLINE and SLIP DRIVESHAFT - BUILD 1310 SERIES with 2 INCH DIAMETER TUBE
- 1310 SPLINE and SLIP DRIVESHAFT - BUILD 1310 SERIES with 2 INCH DIAMETER TUBE - CV STUD YOKE, H YOKE AND CENTERING YOKE
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L6.0000”
