Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 2-3-12961X Double Cardan CV Slip Yoke 1330 series for Borg Warner FORD Transfer Case with 31 spline output
Part #:
2-3-12961X
Your Cost $120.93
Sorry, sold out

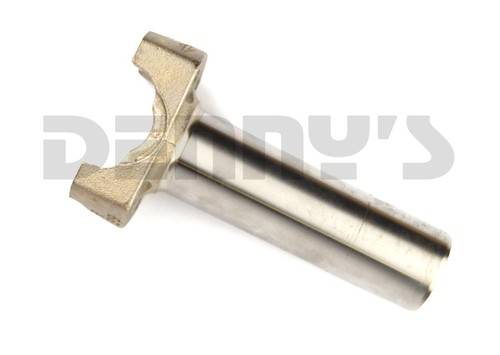

Dana Spicer 2-3-12961X

1330 series SLIP YOKE CV Double Cardan style

  • Fits 31 spline REAR output on FORD Borg Warner Transfer Case
    • DOES NOT FIT transfer case with rear output bolt on yoke

Dimensions

  • 1.390 - 31 splines .... 30 with one wide space = 31 splines on output shaft
  • Nickel Plated
  • Lock up style = OUTSIDE TABS
  • Fits Universal Joint Width = 3.625 inches
  • D - Fits Universal Joint cap diameter = 1.062 inches
  • J - Center of u-joint bore to End of Slip yoke = 7.460 inches
  • R - Barrel Outside Diameter = 1.886 inches
  • Special Notes:  1330 CV Yoke - Double Cardan, Nickel Plated

Spicer
Dana Spicer 2-3-12961X Double Cardan CV Slip Yoke 1330 series for Borg Warner FORD Transfer Case with 31 spline output
Dana Spicer 2-3-12961X Double Cardan CV Slip Yoke 1330 series for Borg Warner FORD Transfer Case with 31 spline output
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $120.93

Dana Spicer 2-3-12961X

1330 series SLIP YOKE CV Double Cardan style

  • Fits 31 spline REAR output on FORD Borg Warner Transfer Case
    • DOES NOT FIT transfer case with rear output bolt on yoke

Dimensions

  • 1.390 - 31 splines .... 30 with one wide space = 31 splines on output shaft
  • Nickel Plated
  • Lock up style = OUTSIDE TABS
  • Fits Universal Joint Width = 3.625 inches
  • D - Fits Universal Joint cap diameter = 1.062 inches
  • J - Center of u-joint bore to End of Slip yoke = 7.460 inches
  • R - Barrel Outside Diameter = 1.886 inches
  • Special Notes:  1330 CV Yoke - Double Cardan, Nickel Plated





Dana Spicer 2-3-12961X Double Cardan CV Slip Yoke 1330 series for Borg Warner FORD Transfer Case with 31 spline output

Dana Spicer 2-3-12961X Double Cardan CV Slip Yoke 1330 series for Borg Warner FORD Transfer Case with 31 spline output
