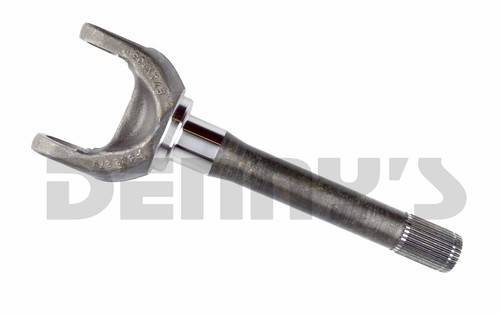

Dana Spicer 40955 OUTER AXLE 30 splines fits 1975 to 1993 Dodge W200, W250, W300, W350, D600, D700 with Dana 60 front axle

DANA SPICER 40955

• OUTER AXLE SHAFT with 30 Splines
• Fits Dana 60 Front Axle
  • Dodge W200, W250, W300, W350, D600, D700

    • 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Genuine DANA SPICER Front Axle Shaft

 DIMENSIONS

• 30 Splines
• Dimension "B1" = 1.31 inch diameter with 30 Splines
• Dimension "B" = 12 inches
• Use with Spicer SPL55-3X Universal Joint...See bottom of this page
• U-Joint Snap Ring Dimension = 3 inches
• U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
