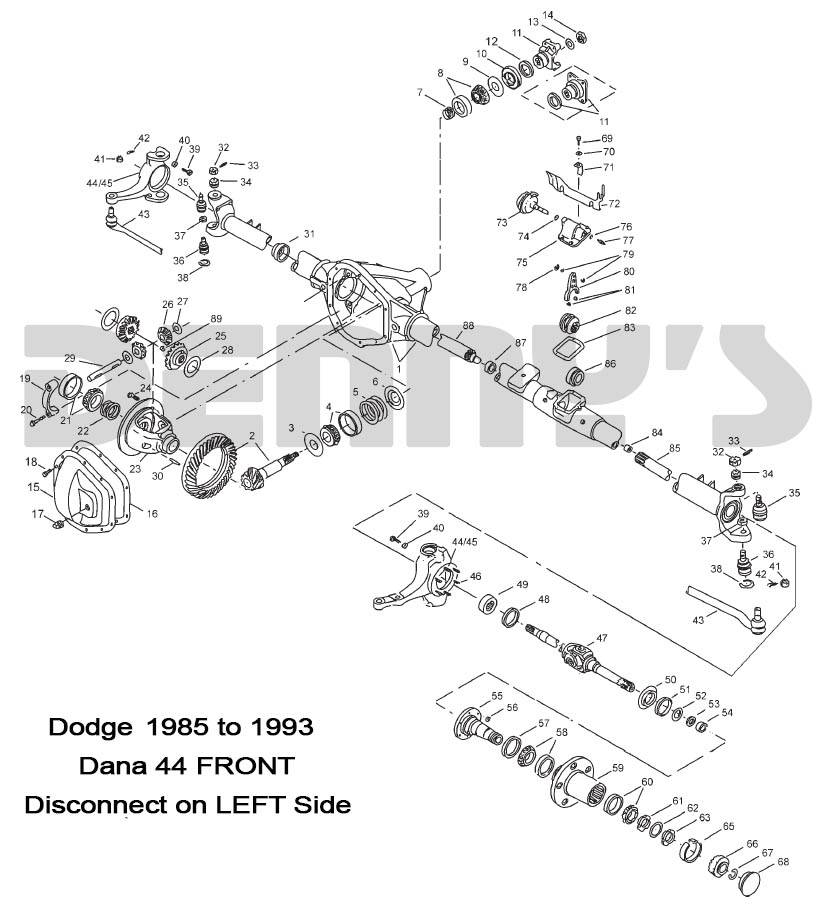

Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
Part #:
75265X
Your Cost $76.45

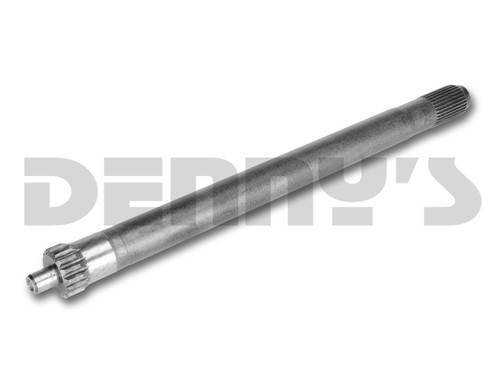

DANA SPICER 75265X

INTERMEDIATE SHAFT - Drivers Side

15 SPLINE

  • Fits DODGE W150, W200, W250 with Dana 44 Disconnect front axle
    • Fits 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
  • Connects the Disconnect Coupler to Differential Side Gear
    • A = 18.2 inches
    • B = 1.59 inches diameter
    • 15 Splines at Disconnect Coupler
    • C = 0.93 inches spline length
    • D = 1.31 inches diameter
    • 30 Splines at Differential Side Gear
    • E = 1.80 inches spline length
    • Drivers Side
    • Replaces old part number 45770

Spicer
Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $76.45

DANA SPICER 75265X

INTERMEDIATE SHAFT - Drivers Side

15 SPLINE

  • Fits DODGE W150, W200, W250 with Dana 44 Disconnect front axle
    • Fits 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
  • Connects the Disconnect Coupler to Differential Side Gear
    • A = 18.2 inches
    • B = 1.59 inches diameter
    • 15 Splines at Disconnect Coupler
    • C = 0.93 inches spline length
    • D = 1.31 inches diameter
    • 30 Splines at Differential Side Gear
    • E = 1.80 inches spline length
    • Drivers Side
    • Replaces old part number 45770



Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle

Dana Spicer 75265X Intermediate Shaft 15 spline fits Drivers Side Disconnect 1985 to 1993-1/2 DODGE W150, W200, W250 with Dana 44 Disconnect front axle
