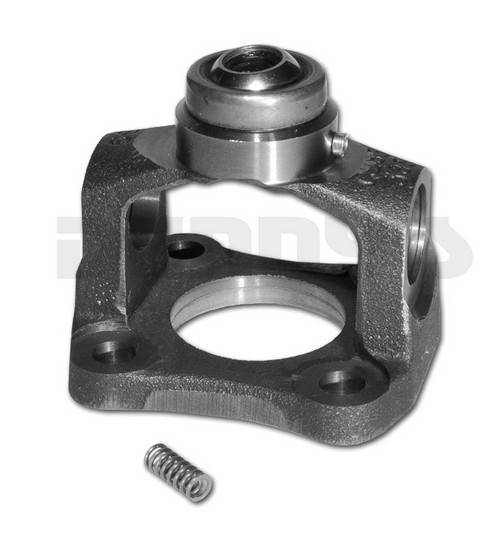

Neapco N2-83-388X GREASEABLE Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft
N2-83-388X
Neapco N2-83-388X
- FLAT FLANGE Style CV Centering Yoke...GREASEABLE
- 1310 Series
- Fits Jeep with aftermarket Flat Flange style 1310 series CV Driveshaft
- 2 inch Pilot
- 3.5 inch bolt circle....2.5 inch X 2.5 inch Bolt pattern
- Center ball socket fits 1/2 inch stud yoke
- New spring Included
- DOES NOT FIt Jeep Rubicon
- Use on any Flat Flange Style AFTERMARKET 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
- Can be used on 1310 series CV Driveshaft to convert from yoke style to flat flange style centering yoke.
Limited Supply: only 4 remaining
Pricing:
$78.26
Description
Neapco N2-83-388X
- FLAT FLANGE Style CV Centering Yoke...GREASEABLE
- 1310 Series
- Fits Jeep with aftermarket Flat Flange style 1310 series CV Driveshaft
- 2 inch Pilot
- 3.5 inch bolt circle....2.5 inch X 2.5 inch Bolt pattern
- Center ball socket fits 1/2 inch stud yoke
- New spring Included
- DOES NOT FIt Jeep Rubicon
- Use on any Flat Flange Style AFTERMARKET 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
- Can be used on 1310 series CV Driveshaft to convert from yoke style to flat flange style centering yoke
- Centering Yoke Fits 1310 Series Universal Joint
- Dimension between snap rings on centering yoke is (3.219 inches) 3 7/32 inches
- Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap
-
| Flange Yokes - CV Flange Yoke | Model/Part #: N2-83-388X |
| A.) Flange or Swing Dia. | 4.500 |
| B) Bolt Circle Dia. | 3.500 |
| Bolt Hole Dia. (NOM) | .500-D |
| Number of Bolt Holes | 4 |
| C) Pilot Dia. M=male F=female | 2.000-F |
| G) Flange Face to C/L | 1.625 |
Details
- N2-83-388X
- N2-83-388X
- Neapco
- Available
- New
Shipping Information
- Item Requires Shipping
- 2.2 lbs.
- W6.0000” x H5.0000” x L6.0000”
