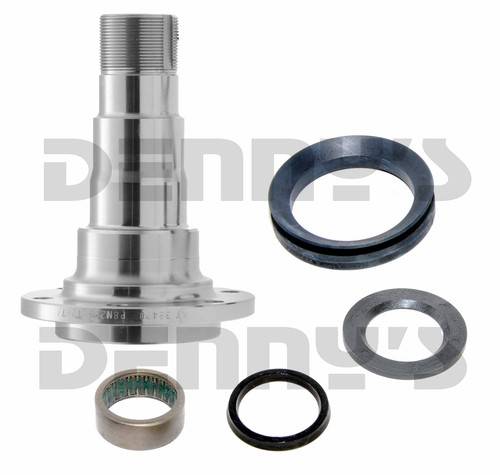

Dana Spicer 706570X SPINDLE with bearing and seals fits 1985 to 1993-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle - FREE SHIPPING

Dana Spicer 706570X

• SPINDLE with bearing and seal kit
  • Comes with 706527X spindle bearing and seal kit
  • Comes with inner spindle bearing installed at the proper depth.

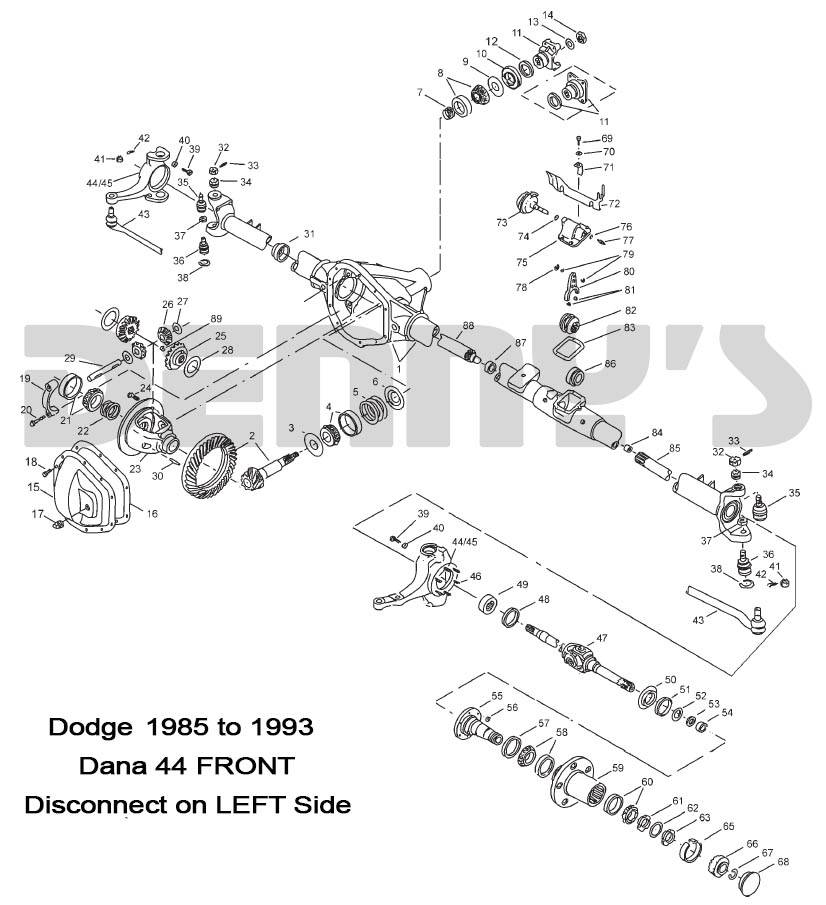

• Fits DODGE W150, W200, W250 with Dana 44 Disconnect front axle
  • Fits Left and Right side
    • 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
  • Fits Right side only
    • 1985, 1986, 1987
  • 6 bolt holes

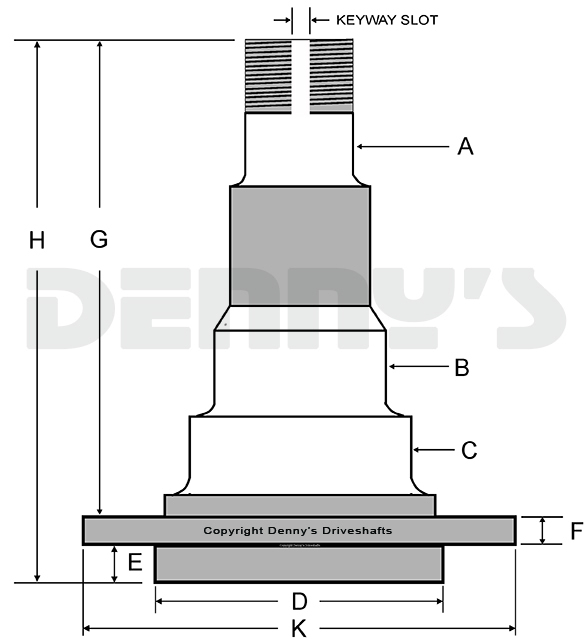

DIMENSIONS

• A = 1-5/8 in. OD for Outer Wheel Bearing
• B = 2 in. OD for Inner Wheel Bearing
• C = 2-1/2 in. OD for Seal
• D = 3-3/8 in.
• E = 7/16 in.
• F = 3/8 in.
• G = 5-5/8 in.
• H = 6-7/16 in.
• K = 4-3/4 in.
• Bolt Holes = 6
• Bolt Hole Diameter = .390 in.
