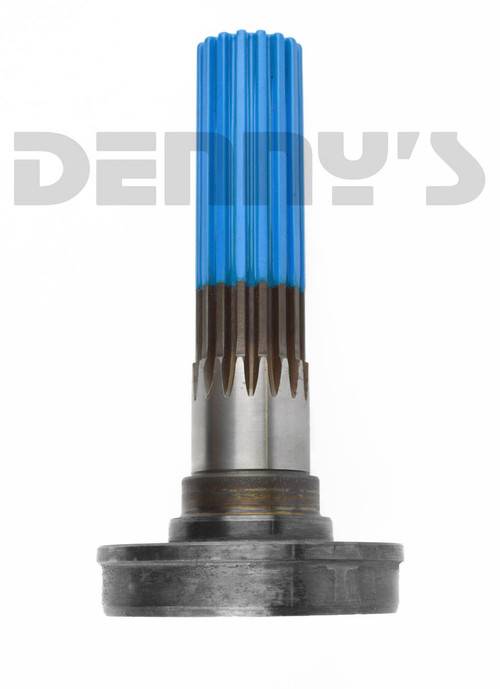

Dana Spicer 3-53-1131 MIDSHIP SPLINE Fits 4.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines
Part #:
3-53-1131
Your Cost $127.02

DANA SPICER 3-53-1131

  • MIDSHIP SPLINE
  • Use with Center Support Bearing


Spicer
Dana Spicer 3-53-1131 MIDSHIP SPLINE Fits 4.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines
Dana Spicer 3-53-1131 MIDSHIP SPLINE Fits 4.0 inch .083 wall tubing 1.500 inch Diameter with 16 Splines
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $127.02

DANA SPICER 3-53-1131

  • MIDSHIP SPLINE
  • Use with Center Support Bearing
  • Fits any series 16 Spline SLIP YOKE designed for 1.500 inch diameter spline
    • Fits TUBE DIAMETER = 4.0 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .083 inch Tube wall thickness
    • Major SPLINE Diameter = 1.500
    • SPLINES = 16
    • STYLE = 1
    • B = 1.810
    • C = 1.575
    • G = .875
    • K = 7.062
    • L = 4.438
    • Y = 5.940
  • SPECIAL NOTES:
    • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 3-53-1131 MIDSHIP SPLINE Fits 4.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines

Dana Spicer 3-53-1131 MIDSHIP SPLINE Fits 4.0 inch .083 wall tubing 1.500 inch Diameter with 16 Splines
