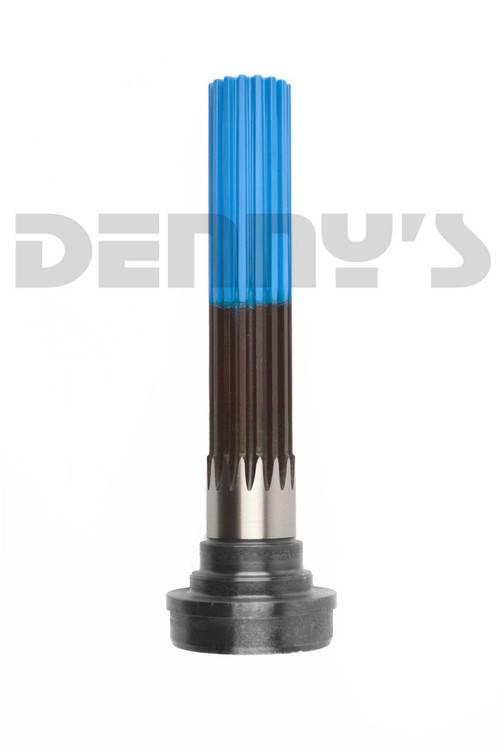

Dana Spicer 3-53-1531 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.500 inch Diameter with 16 Splines

SKU: 3-53-1531

DANA SPICER 3-53-1531

Limited Supply: only 2 remaining

Pricing: $145.95

Description

DANA SPICER 3-53-1531

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 16 Spline SLIP YOKE designed for 1.500 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.500
- SPLINES = 16
- STYLE = 1
- B = 1.810
- C = 1.575
- G = .875
- K = 9.200
- L = 6.580
- Y = 8.080
SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
