Driveshaft and Driveline Parts > SPLINES...Center Bearing style using a SLIP YOKE > 1.5 inch - 15 BASED on 16 SPLINES > Use with 3.0 INCH .095 wall TUBING

Dana Spicer 3-53-2291 MIDSHIP SPLINE Fits 3.0 inch .095 wall tube 1.500 inch Diameter with 15/16 Splines

Part Number:
3-53-2291

UPC:

023913234430

Your Cost ~~$222.72~~ Sale Price $195.95

You Save $26.77

STATUS: FACTORY DIRECT with FREE SHIPPING

DANA SPICER 3-53-2291

MIDSHIP SPLINE
Use with Center Support Bearing

Spicer

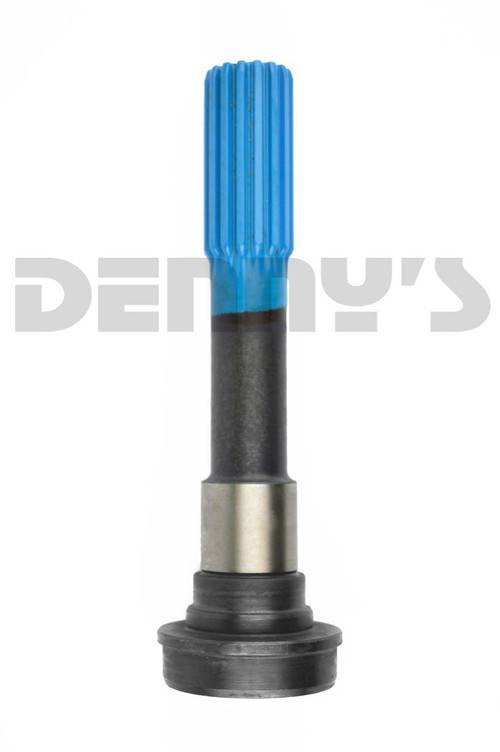

Dana Spicer 3-53-2291 MIDSHIP SPLINE Fits 3.0 inch .095 wall tube 1.500 inch Diameter with 15/16 Splines

Dana Spicer 3-53-2291 MIDSHIP SPLINE Fits 3.0 inch .095 wall tubing 1.500 inch Diameter with 15/16 Splines

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT with FREE SHIPPING

YOUR COST: ~~$222.72~~ Sale Price $195.95

You Save $26.77

DANA SPICER 3-53-2291

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 15 based on 16 Spline SLIP YOKE designed for 1.500 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .095 inch Tube wall thickness
- Major SPLINE Diameter = 1.500
- SPLINES = 15/16
- STYLE = 2
- B = 1.812
- C = 1.575
- G = .875
- K = 9.350
- L = 3.000
- Y = 8.234
SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
- May use boot 212010X, order separate

CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 3-53-2291 MIDSHIP SPLINE Fits 3.0 inch .095 wall tube 1.500 inch Diameter with 15/16 Splines

Dana Spicer 3-53-2291 MIDSHIP SPLINE Fits 3.0 inch .095 wall tubing 1.500 inch Diameter with 15/16 Splines

You May Also Need These Parts to Complete the Job

DANA SPICER 212010X Rubber Dust Boot 1.230 ID x 1.670 ID x 4.070 inches long 4 Bellows for spline and slip yoke style driveshaft fits 1350 and 1410 series

DANA SPICER 212010X Rubber Dust Boot 1.230 ID x 1.670 ID x 4.070 inches long 4 Bellows for spline and slip yoke style driveshaft fits 1350 and 1410 series
Part#: 212010X

$20.95
