Driveshaft and Driveline Parts > SPLINES...Center Bearing style using a SLIP YOKE > 1.375 - 16 SPLINES > Use with 3.0 INCH TUBING

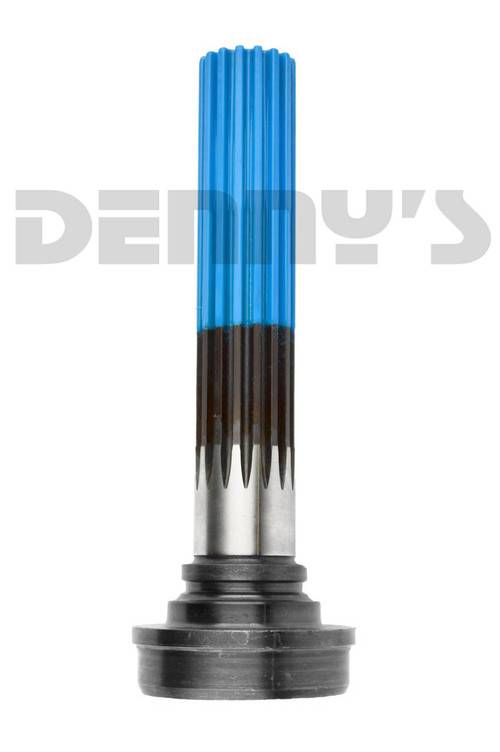

Dana Spicer 2-53-501 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines

Part Number:
2-53-501

UPC:

023913230432

Your Cost ~~$121.28~~ Sale Price $101.57

You Save $19.71

STATUS: IN STOCK

DANA SPICER 2-53-501

MIDSHIP SPLINE
Use with Center Support Bearing

Spicer

Dana Spicer 2-53-501 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines

Dana Spicer 2-53-501 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 16 Splines

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$121.28~~ Sale Price $101.57

You Save $19.71

DANA SPICER 2-53-501

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 16
- STYLE = 1
- B = 1.688
- C = 1.378
- G = .812
- K = 8.000
- L = 5.406
- Y = 6.938
SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)

CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 2-53-501 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines

Dana Spicer 2-53-501 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 16 Splines
