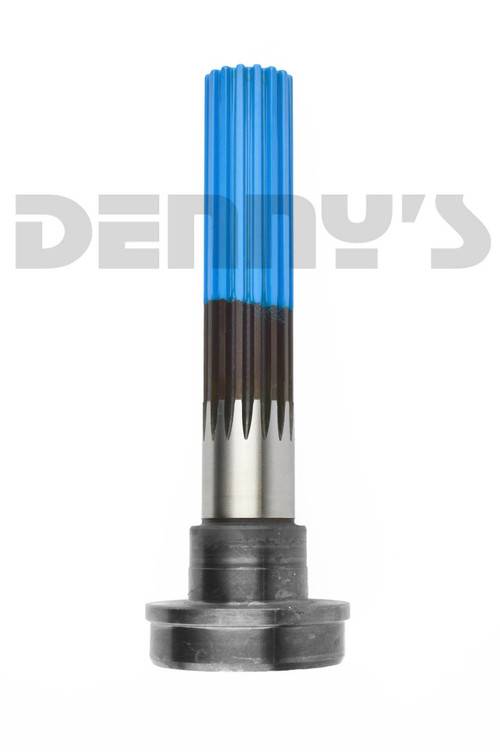

Dana Spicer 3-53-1361 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines CL of weld to end 8.094 in.

SKU: 3-53-1361

DANA SPICER 3-53-1361

Pricing: $164.95

Description

DANA SPICER 3-53-1361

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 16
- STYLE = 1
- B = 1.719
- C = 1.378
- G = 1.125
- K = 8.094
- L = 4.969
- Y = 6.750
SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
