Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

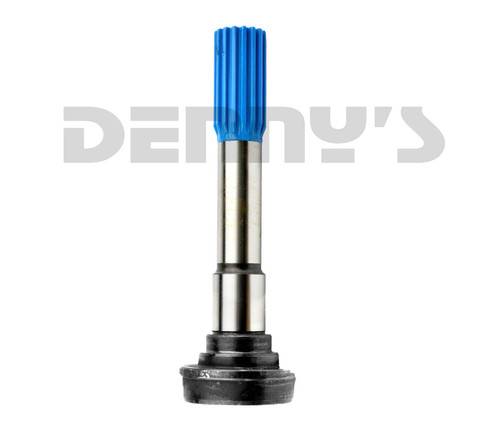

Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 15/16 Splines
Part #:
2-53-711
Your Cost $79.46

DANA SPICER 2-53-711

  • MIDSHIP SPLINE
  • Use with Center Support Bearing


Spicer
Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 15/16 Splines
Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 15/16 Splines
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $79.46

DANA SPICER 2-53-711

  • MIDSHIP SPLINE
  • Use with Center Support Bearing
  • Fits any series 15 Based on 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
    • Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .083 inch Tube wall thickness
    • Major SPLINE Diameter = 1.375
    • SPLINES = 15/16
    • STYLE = 2
    • B = 1.688
    • C = 1.378
    • G = .812
    • K = 9.031
    • L = 2.500
    • Y = 7.969
  • SPECIAL NOTES:
    • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
    • May use boot 211916X or dust cap 211121X, order seperate



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 15/16 Splines

Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 15/16 Splines
