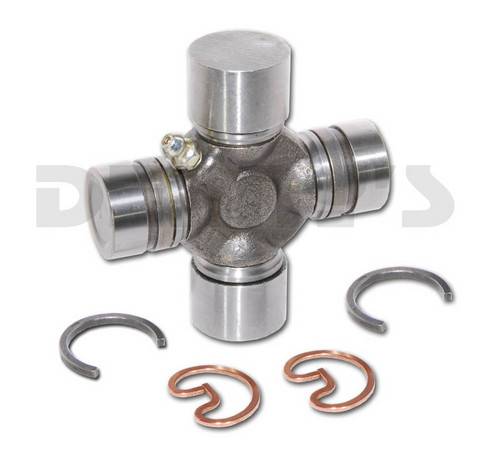

11-8574 Mustang 1964-1966 COMBINATION Universal Joint with Inside & Outside Snap Rings

Part Number 11-8574

Greaseable COMBINATION Universal Joint for 1964-1966 Mustang.

Use this handy and hard to find combination u-joint to connect early Mustang inside "C" Clip style driveshafts to a newer outside snap ring style 1310 Series slip yoke.

• GREASEABLE U-Joint
• Dimensions:
  • Dimension "A" The span between the yoke inner surfaces where the "C" Clips lock in at the driveshaft is 2.344 inches
  • Dimension "C" = 2 bearing caps are 1 inch diameter with inside "C" Clips to lock the cap in place.
  • Dimension "B" = 3.219 inches wide where is connects to a 1310 series slip yoke
  • Dimension "D" = 2 bearing caps are 1.062 inch diameter where is connects to a 1310 series slip yoke with outside snap rings to lock the bearing caps in place

Please note: We do not sell universal joints based on year, make and model. Too many mistakes are made this way because too many vehicles are modified. Instead we sell them based on actual dimensions so that you get the right u-joint when you receive it. To order you must measure how wide your u-joint is in both directions and the bearing cap diameters of all 4 caps. This must be done at each end of your driveshaft.
