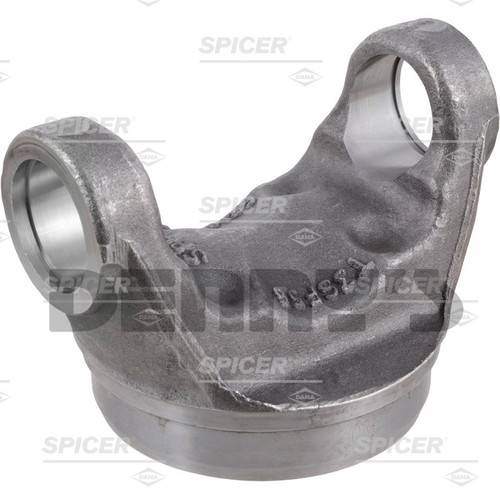

DANA SPICER 4-28-277 Weld Yoke 1550 Series fits 4.0 inch .083 wall tube

DANA SPICER 4-28-277

1550 Series Weld Yoke

• Fits 4.0 inch OD X .083 wall tubing
  • F - Butt Diameter = 3.845
• Series = 1550
• Lock up style = OUTSIDE SNAP RING
• E - Universal Joint Width = 4.964

• D - Universal Joint Bore = 1.375

• H - Center of u-joint bore to point of weld = 2.188
• Special Notes: USE KIT 5-155X, SPL70X
