DANA SPICER 75814-1X LEFT SIDE Axle Assembly fits DANA 30 Disconnect Front 1986 to 1996 Jeep WRANGLER YJ and 1984 to 1991-1/2 Jeep XJ with NO ABS replaces old number 75587-1X axle - FREE SHIPPING
Part #:
75814-1X
Your Cost $190.95

Dana Spicer 75814-1X

  • Replaces Dana Spicer 75587-1X
  • Replaces Dana Spicer 71859-1X
    • NOTE: 71859-1X used the smaller 5-260X universal joint but 75814-1X complete axle assembly can be installed as a replacement

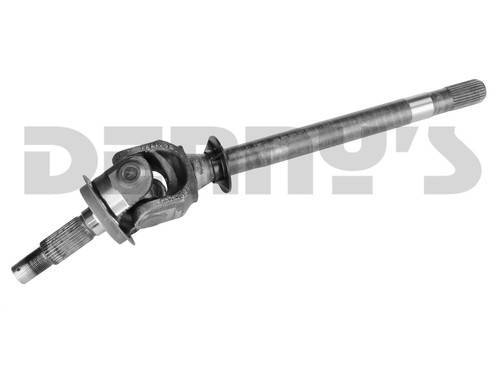

COMPLETE AXLE ASSEMBLY for Jeep Dana 30 DISCONNECT Front

Fits LEFT SIDE - Drivers Side - NO ABS

  • Jeep Wrangler YJ with Dana 30 DISCONNECT front axle and NO ABS
    • 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
  • Jeep Wrangler XJ Cherokee with Dana 30 DISCONNECT front axle and NO ABS
    • 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1991-1/2

DIMENSIONS

  • A = 22.68 inches
  • B = 6.11 inches - 27 SPLINE OUTER
  • C = 16.57 inches - 27 SPLINE INNER

COMPONENT PARTS of 75814-1X

Completely assembled and ready to install

  • Comes with 5-760X Dana Spicer universal joint
  • NOTE: Some applications used the smaller 5-260X universal joint but part number 75814-1X complete axle assembly can be installed as a replacement.





FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Spicer
DANA SPICER 75814-1X LEFT SIDE Axle Assembly fits DANA 30 Disconnect Front 1986 to 1996 Jeep WRANGLER YJ and 1984 to 1991-1/2 Jeep XJ with NO ABS replaces old number 75587-1X axle - FREE SHIPPING
DANA SPICER 75814-1X LEFT SIDE Axle Assembly fits DANA 30 Disconnect Front 1986 to 1996 Jeep WRANGLER YJ and 1984 to 1991-1/2 Jeep XJ with NO ABS replaces old number 75587-1X axle - FREE SHIPPING
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $190.95
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

Dana Spicer 75814-1X

  • Replaces Dana Spicer 75587-1X
  • Replaces Dana Spicer 71859-1X
    • NOTE: 71859-1X used the smaller 5-260X universal joint but 75814-1X complete axle assembly can be installed as a replacement

COMPLETE AXLE ASSEMBLY for Jeep Dana 30 DISCONNECT Front

Fits LEFT SIDE - Drivers Side - NO ABS

  • Jeep Wrangler YJ with Dana 30 DISCONNECT front axle and NO ABS
    • 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
  • Jeep Wrangler XJ Cherokee with Dana 30 DISCONNECT front axle and NO ABS
    • 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1991-1/2

DIMENSIONS

  • A = 22.68 inches
  • B = 6.11 inches - 27 SPLINE OUTER
  • C = 16.57 inches - 27 SPLINE INNER

COMPONENT PARTS of 75814-1X

Completely assembled and ready to install

  • Comes with 5-760X Dana Spicer universal joint
  • NOTE: Some applications used the smaller 5-260X universal joint but part number 75814-1X complete axle assembly can be installed as a replacement.





FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.
