Driveshaft and Driveline Parts > SLIP YOKES - For 4X4 Transfer Case > NP261XHD NP263XHD with 31 SPLINE rear output 2.200 barrel OD > 1480 SERIES - OUTSIDE SNAP RINGS

DANA SPICER 55-3-01672X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1480 Series 2.200 barrel OD 8.34 inches long NICKEL Plated
Part Number:
55-3-01672X


UPC:
023913292171
 Your Cost $160.95
STATUS:  IN STOCK - FREE SHIPPING

DANA SPICER 55-3-01672X

SLIP YOKE 1480 series

  • Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
    • Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
    • You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
  • Fits Dodge, Chevy and GMC 2500/3500 4x4 Rear Driveshaft

 DIMENSIONS

  • Spline/Hole Outside Diameter = 1.616
  • Number of Splines = 30/31
  • Series = SPL55/1480
  • Lock up style = OUTSIDE Snap Ring
  • Universal Joint Width = 4.188
  • D - Universal Joint Bore = 1.375
  • J - Center of u-joint bore to End of Slip yoke = 8.339
  • R - Barrel Outside Diameter = 2.200
  • Special Notes:  NICKEL PLATED TRANSFER CASE SLIP YOKE



Spicer

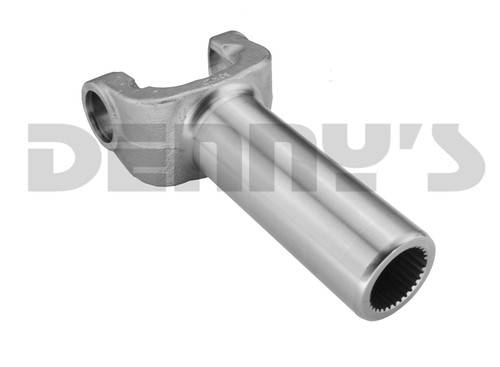

DANA SPICER 55-3-01672X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1480 Series 2.200 barrel OD 8.34 inches long NICKEL Plated
DANA SPICER 55-3-01672X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1480 Series 2.200 barrel OD 8.34 inches long NICKEL Plated
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $160.95

DANA SPICER 55-3-01672X

SLIP YOKE 1480 series

  • Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
    • Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
    • You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
  • Fits Dodge, Chevy and GMC 2500/3500 4x4 Rear Driveshaft

 DIMENSIONS

  • Spline/Hole Outside Diameter = 1.616
  • Number of Splines = 30/31
  • Series = SPL55/1480
  • Lock up style = OUTSIDE Snap Ring
  • Universal Joint Width = 4.188
  • D - Universal Joint Bore = 1.375
  • J - Center of u-joint bore to End of Slip yoke = 8.339
  • R - Barrel Outside Diameter = 2.200
  • Special Notes:  NICKEL PLATED TRANSFER CASE SLIP YOKE





DANA SPICER 55-3-01672X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1480 Series 2.200 barrel OD 8.34 inches long NICKEL Plated

DANA SPICER 55-3-01672X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1480 Series 2.200 barrel OD 8.34 inches long NICKEL Plated
