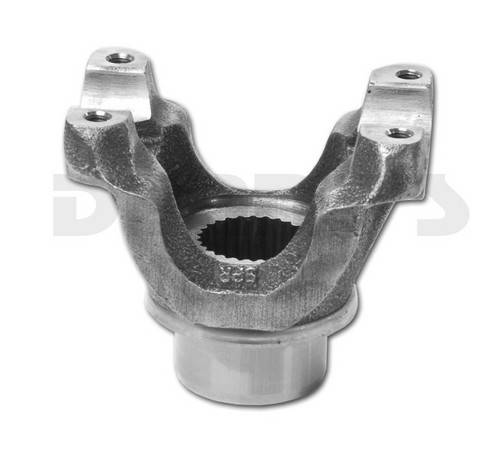

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke OEM 1310 series strap and bolt style fits DANA 36 from 1984 to 1996 with 26 spline pinion
2-4-8091-1X
DANA SPICER 2-4-8091-1X
OEM pinion yoke
- Fits 1984 to 1996 Corvette Dana 36 with 26 spline pinion
- 1310 Series universal joint
- 3 7/32 inches wide cap to cap
- 1 1/16 inch bearing caps
- Strap & Bolt style....Sold separately ...see item at bottom of page.
- 26 splines
- SPLINE OD = 1.146
- D = 1.062
- E = 3.219
- Q = 1.500
- R = 1.552
- S = 3.000
Limited Supply: only 2 remaining
Pricing:
$52.95
Description
DANA SPICER 2-4-8091-1X
OEM pinion yoke
- Fits 1984 to 1996 Corvette Dana 36 with 26 spline pinion
- 1310 Series universal joint
- 3 7/32 inches wide cap to cap
- 1 1/16 inch bearing caps
- Strap & Bolt style....Sold separately ...see item at bottom of page.
- 26 splines
- SPLINE OD = 1.146
- D = 1.062
- E = 3.219
- Q = 1.500
- R = 1.552
- S = 3.000

Details
- 2-4-8091-1X
- 2-4-8091-1X
- Spicer
- Available
- New
Categories
- GENERAL MOTORS REAR ENDS - DANA 44 REAR END 1980 to 1996 - PINION SEAL
- AXLES and REAR DIFF Parts - GENERAL MOTORS REAR ENDS - DANA 44 REAR END 1980 to 1996
- Chevrolet - CORVETTE - REAR END PARTS
- CORVETTE - REAR END PARTS - DANA 44 REAR END 1980 to 1996
- REAR END PARTS - DANA 44 REAR END 1980 to 1996 - PINION SEAL
Shipping Information
- Item Requires Shipping
- 2.1 lbs.
- W6.0000” x H5.0000” x L5.0000”
