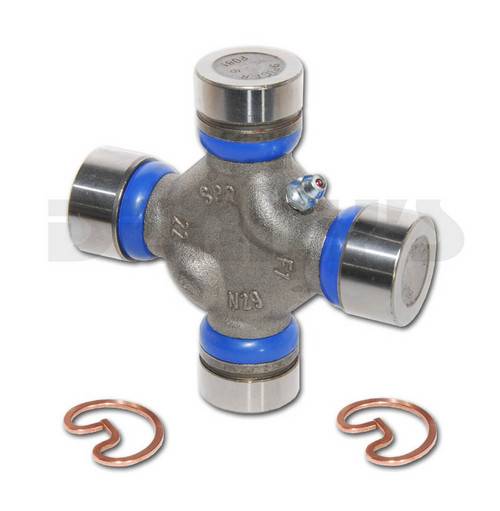

DANA SPICER 5-1204X - Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps Greaseable
Part Number:
5-1204X


UPC:
023913121082
Your Cost $19.38
STATUS:  IN STOCK

DANA SPICER 5-1204X

1330 Series Spicer Greaseable Universal Joint

Fits ALL FORD 1330 (Big Cap) applications that require a u-joint that is 3 5/8 inch wide with (2) 1.062 and (2) 1.125 inch diameter bearing caps




Spicer
DANA SPICER 5-1204X - Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps Greaseable
Dana Spicer 5-1204X Ford Big Cap Universal Joint
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $19.38

DANA SPICER 5-1204X

1330 Series Spicer Greaseable Universal Joint

Fits ALL FORD 1330 (Big Cap) applications that require a u-joint that is 3 5/8 inch wide with (2) 1.062 and (2) 1.125 inch diameter bearing caps

Commonly found on

  • Ford Truck manual transmission bolt on yokes
  • Ford 4x4 transfer case bolt on yokes
  • Ford 4x4 front differential pinion yokes
  • Ford car and truck Rear End PINION YOKES
  • For use at rear of FORD Mustang driveshaft where 1.125 cap diameter bearing cap is required to fit Ford 8.8 or Ford 9 inch u-bolt style pinion yoke.



Dana Spicer 5-1204X

  • GREASEABLE U-Joint....Grease Fitting in body of u-joint
  • 1330 series dimensions
    • 3.625 inches wide in both directions
    • 2 bearing caps are 1.0625 inch diameter
    • 2 bearing caps are 1.125 inch diameter
    • Outside snap rings

DO NOT use on 1330 driveshaft with 1330 flat flange yoke.

  • If you have a 1330 series flat flange yoke on your driveshaft then you will need SPICER 5-1330X
DANA SPICER 5-1204X - Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps Greaseable

Dana Spicer 5-1204X Ford Big Cap Universal Joint
